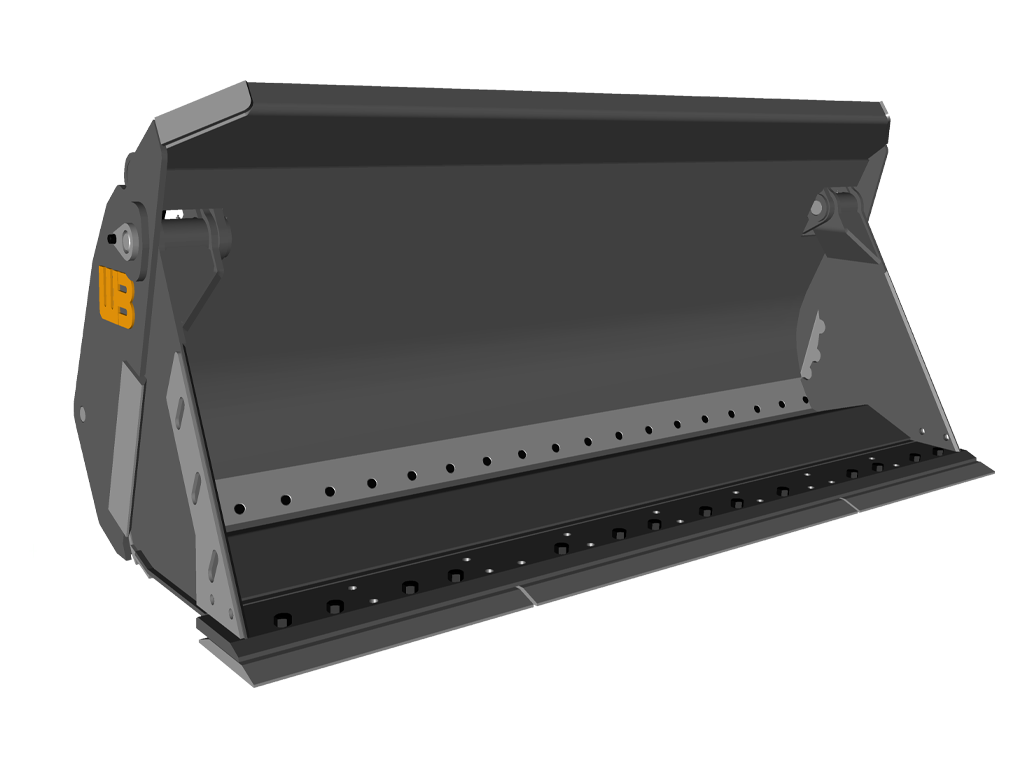

WERK-BRAU Multi-Purpose Quad Bucket for Wheel loaders 20,000 - 26,000 lbs. (class 2)

$16,120.00 - $19,073.00

Business Financing Available

Capacity

2/24

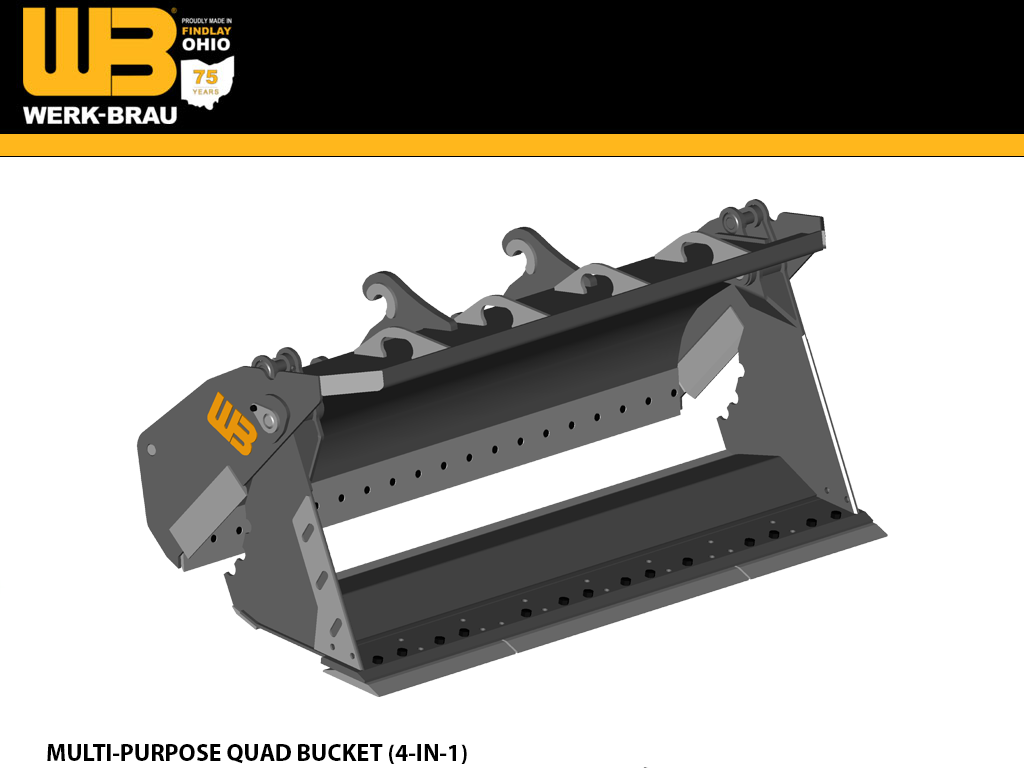

MULTI-PURPOSE QUAD BUCKET (4-IN-1)

Recommended Applications

Specifically designed to add versatility to a standard loader bucket. Can be used for light grading, backfilling, material handling as well as loading. Not designed to be used in heavy rock applications.

Quality Construction

High strength, wear resistant steel is used in cutting edges. High quality cylinders are utilized in all models. All pivot points are greaseable and lined with hardened bushings. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Tooth Equipment Options

Cutting edge can be drilled to accept bolt-on teeth or a replaceable bolt-on edge.

Standard Sizes

Specific widths and capacities made to meet customer requirements.

Additional Features

All models fitted with attaching ears that meet all pertinent OEM specifications. Dozer edge is equipped with replaceable bolt on edge.

  • Designed for multipurpose application jobs
  • Lifting Loops
  • 90° clam rotation
  • Dual replaceable edges - Dozer and Clam front edges
  • includes bolt on cutting edge
  • does not include hose kit
PART # WIDTH CAPACITY WEIGHT
QB2WL100-1.50 100" 1.50 2,775
QB2WL100-2.00 100" 2.00 3,275
QB2WL100-2.50 100" 2.50 3,675

CLASS 2 (20,000 - 26,000 LBS) MODEL
CASE 521G
CAT 924, 928, 930, IT24-28
DEVELON DL200-5, DL200TC-5, DL200-7
HITACHI ZW140
HYUNDAI HL730, HL740, HL940
JCB 416
JOHN DEERE 444
KOMATSU WA150, WA200
KUBOTA
LIEBHERR L526
LINK-BELT
NEW HOLLAND LW110
SANY
TAKEUCHI
VOLVO L60
WACKER NEUSON
YANMAR
