QB3WL100-2.50

WERK-BRAU Multi-Purpose Quad Bucket for Wheel loaders 26,000 - 30,000 lbs. (class 3)

Capacity

2/24

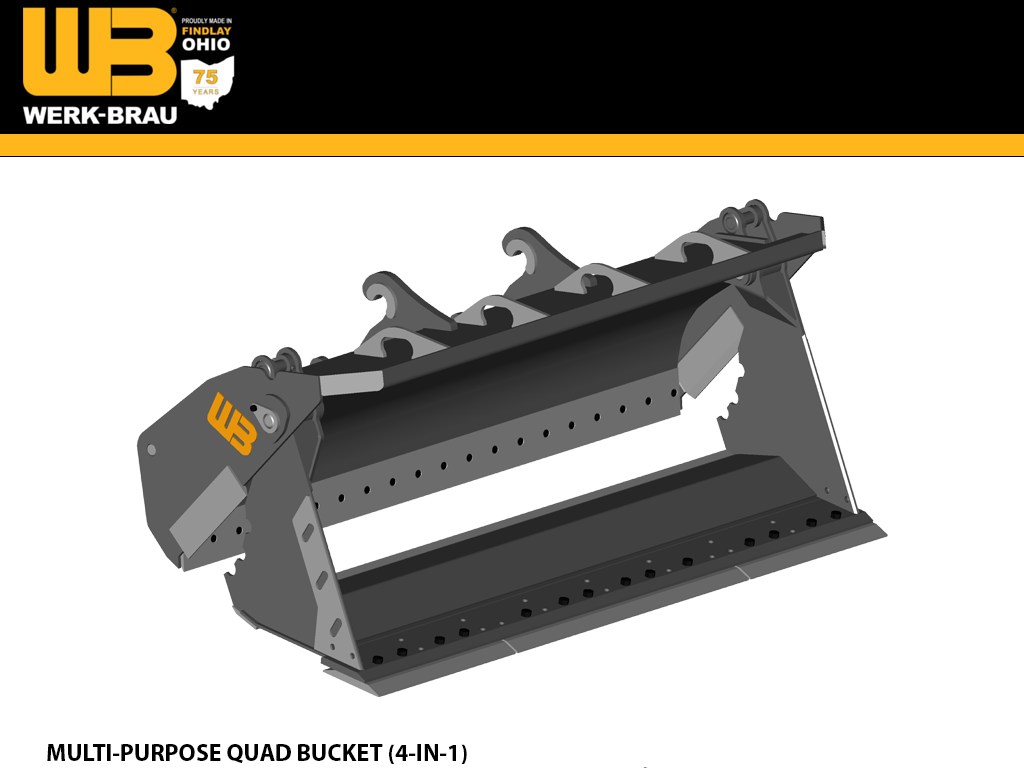

MULTI-PURPOSE QUAD BUCKET (4-IN-1)

Recommended Applications

Specifically designed to add versatility to a standard loader bucket. Can be used for light grading, backfilling, material handling as well as loading. Not designed to be used in heavy rock applications.

Quality Construction

High strength, wear resistant steel is used in cutting edges. High quality cylinders are utilized in all models. All pivot points are greaseable and lined with hardened bushings. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Tooth Equipment Options

Cutting edge can be drilled to accept bolt-on teeth or a replaceable bolt-on edge.

Standard Sizes

Specific widths and capacities made to meet customer requirements.

Additional Features

All models fitted with attaching ears that meet all pertinent OEM specifications. Dozer edge is equipped with replaceable bolt on edge.

  • Designed for multipurpose application jobs
  • Lifting Loops
  • 90° clam rotation
  • Dual replaceable edges - Dozer and Clam front edges
  • includes bolt on cutting edge
  • does not include hose kit
PART # WIDTH CAPACITY WEIGHT
QB3WL100-2.50 100" 2.50 3,850
QB3WL100-3.00 100" 3.00 4,050
QB3WL100-3.25 100" 3.25 4,350

CLASS 3 (26,000 - 30,000 LBS) MODEL
CASE 621G
CAT 935, 936
DEVELON DL220-5, DL220-7
HITACHI ZW150
HYUNDAI HL750
JCB 426, 427
JOHN DEERE 524, 544
KOMATSU WA250, WA270
KUBOTA
LIEBHERR L538
LINK-BELT L140
NEW HOLLAND LW130
SANY SW305
TAKEUCHI
VOLVO L70
WACKER NEUSON
YANMAR
