QB5WL124-3.50

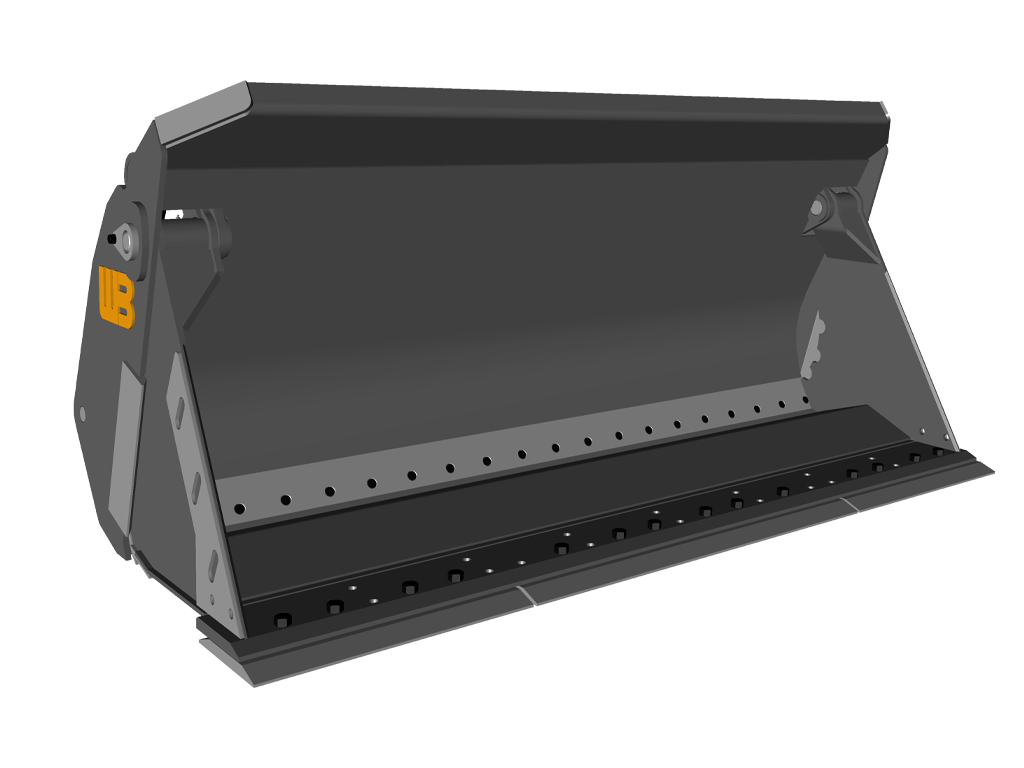

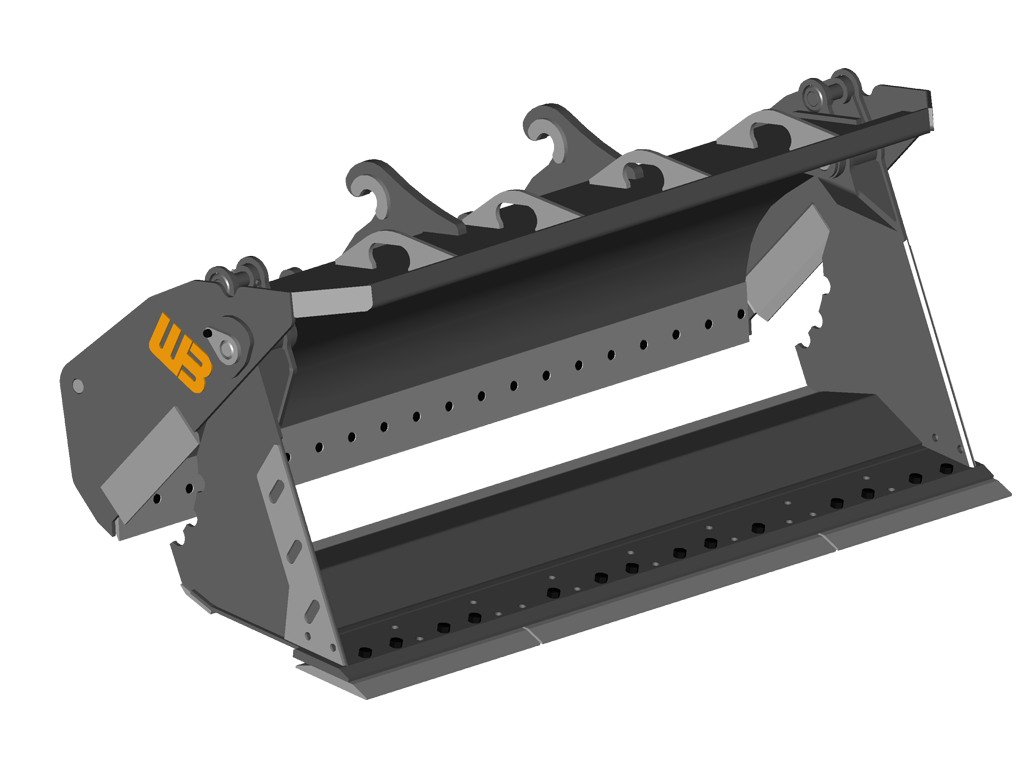

WERK-BRAU Multi-Purpose Quad Bucket for Wheel loaders 43,000 - 51,000 lbs. (class 5)

Capacity

2/24

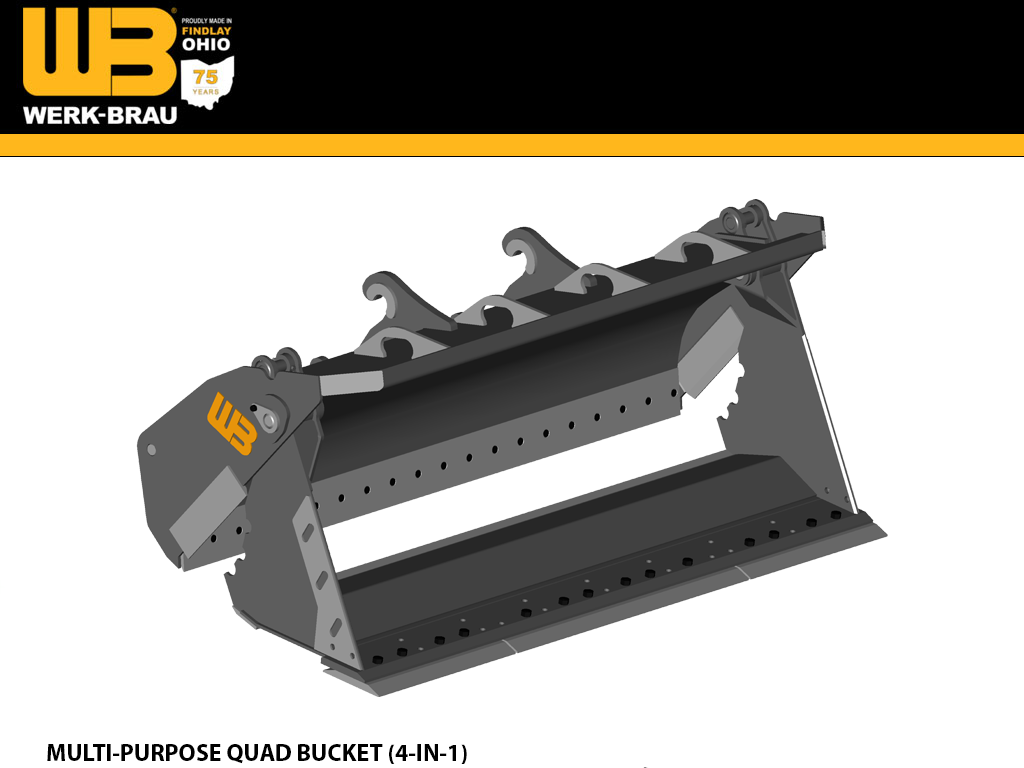

MULTI-PURPOSE QUAD BUCKET (4-IN-1)

Recommended Applications

Specifically designed to add versatility to a standard loader bucket. Can be used for light grading, backfilling, material handling as well as loading. Not designed to be used in heavy rock applications.

Quality Construction

High strength, wear resistant steel is used in cutting edges. High quality cylinders are utilized in all models. All pivot points are greaseable and lined with hardened bushings. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Tooth Equipment Options

Cutting edge can be drilled to accept bolt-on teeth or a replaceable bolt-on edge.

Standard Sizes

Specific widths and capacities made to meet customer requirements.

Additional Features

All models fitted with attaching ears that meet all pertinent OEM specifications. Dozer edge is equipped with replaceable bolt on edge.

  • Designed for multipurpose application jobs
  • Lifting Loops
  • 90° clam rotation
  • Dual replaceable edges - Dozer and Clam front edges
  • includes bolt on cutting edge
  • does not include hose kit
PART # WIDTH CAPACITY WEIGHT
QB5WL124-3.50 124" 3.50 4,900
QB5WL124-4.00 124" 4.00 5,100
QB5WL124-4.50 124" 4.50 5,400


CLASS 5 (43,000 - 51,000 LBS) MODEL
CASE 1021G, 1121G
CAT 966, 970
DEVELON DL420-5, DL420-7, DL450-5, DL450-7
HITACHI ZW310, ZX330
HYUNDAI HL970, HL770
JCB
JOHN DEERE 744, 824
KOMATSU WA470, WA480
KUBOTA
LIEBHERR L566X
LINK-BELT
NEW HOLLAND LW230
SANY
TAKEUCHI
VOLVO L150
WACKER NEUSON
YANMAR
