PG07-24-14T
WERK BRAU Powergrip bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
$16,853.00 - $20,200.00
10/24
POWERGRIP BUCKET
Recommended Applications

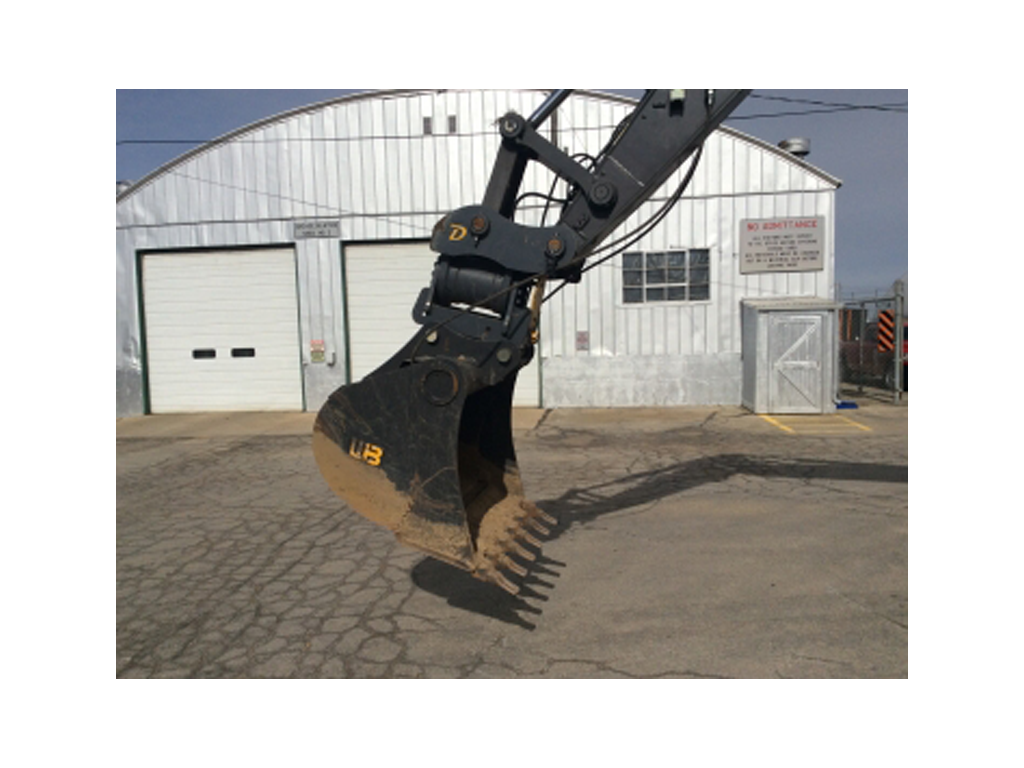

Specifically designed to enhance a machines grading, trenching, or clamshell capabilities with precise control. Capable of 120 degrees of jaw movement.
Quality Construction
High strength steel is used throughout the weldment. Hardened greasable bushings are utilized at all pivot points. High quality actuator used inside cross tube with no exposed cylinders. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. Includes a holding force of approximately 3x clamping force, while maintaining constant operating speed.
Standard Sizes
Widths range from 24" and 60" pending machine class. Capacities range from 0.46 cu yd up to 1.50 cu yd.
Additional Features
Eliminates the need for any additional attachment and can be utilized along with a mechanical or hydraulic coupler, also available.
Features

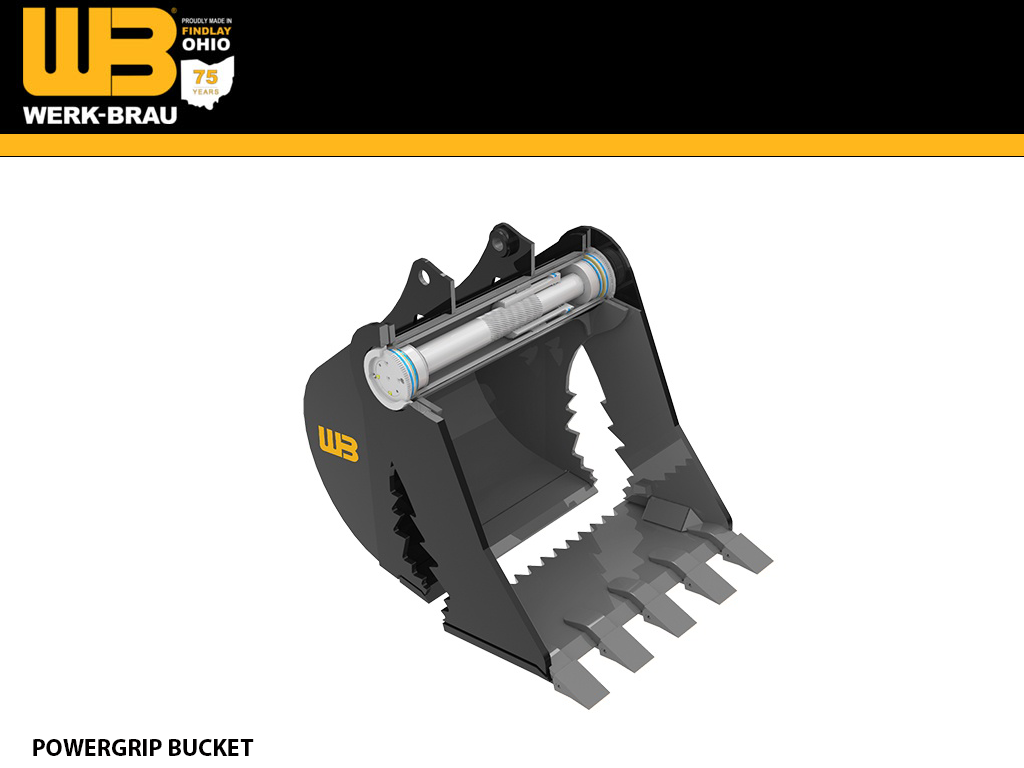

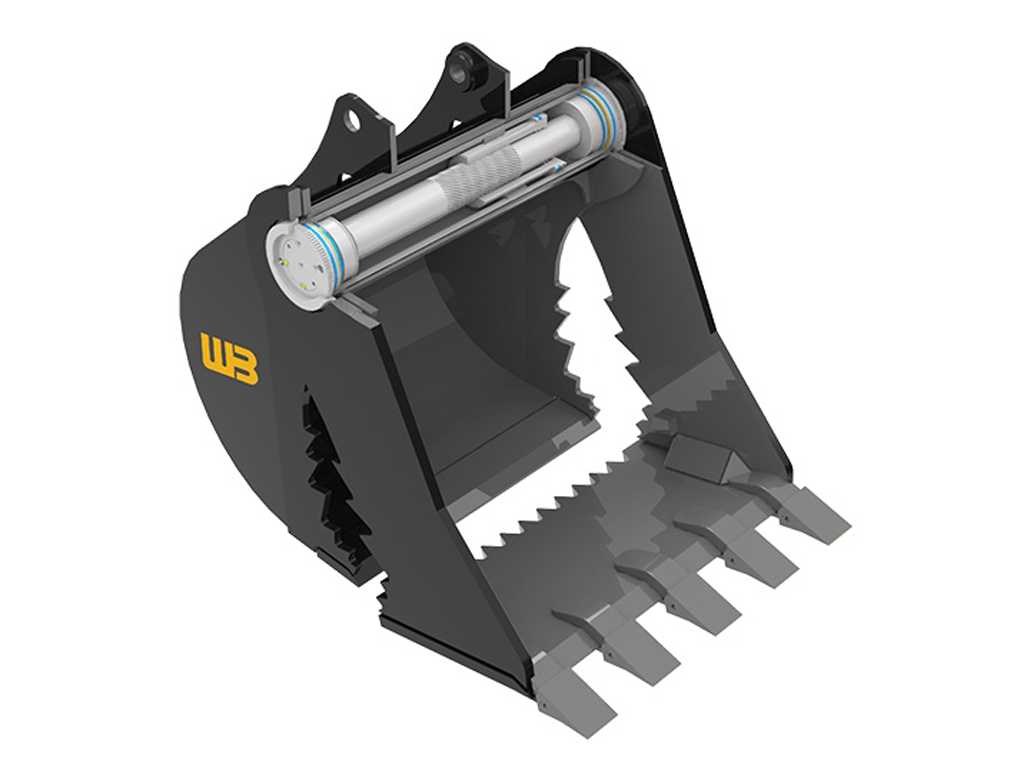

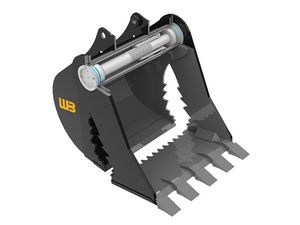

- Enclosed rotary actuator hinge in cross-tube
- No obstruction in jaw or bucket shell
- No exposed cylinders or other external moving parts

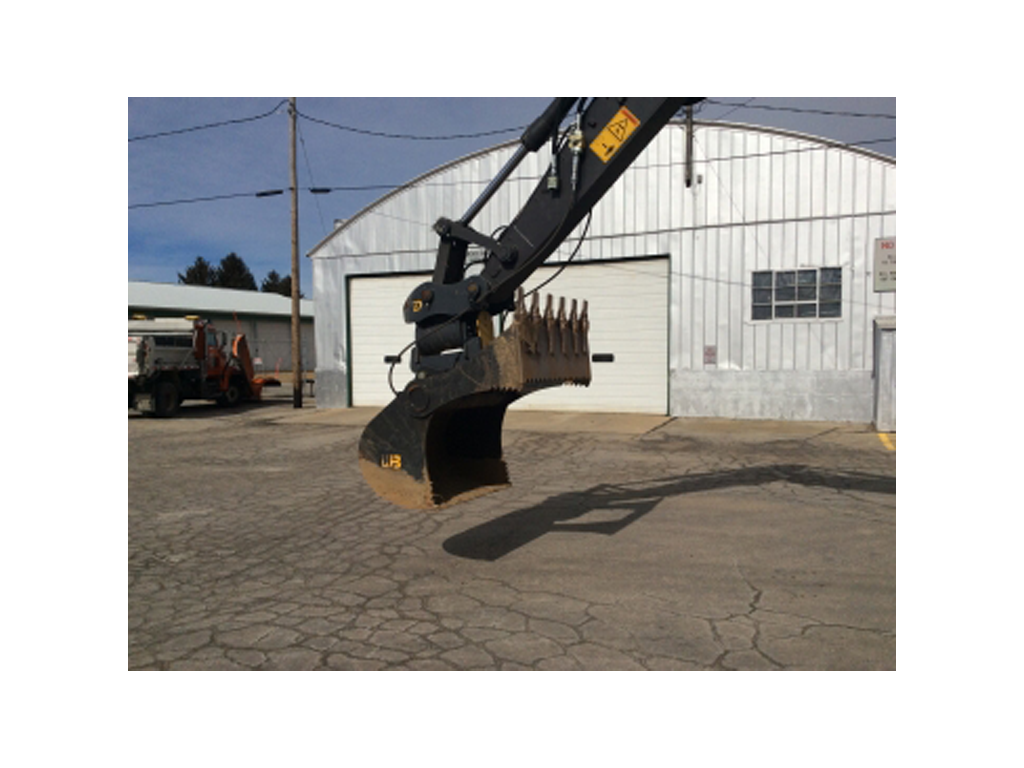

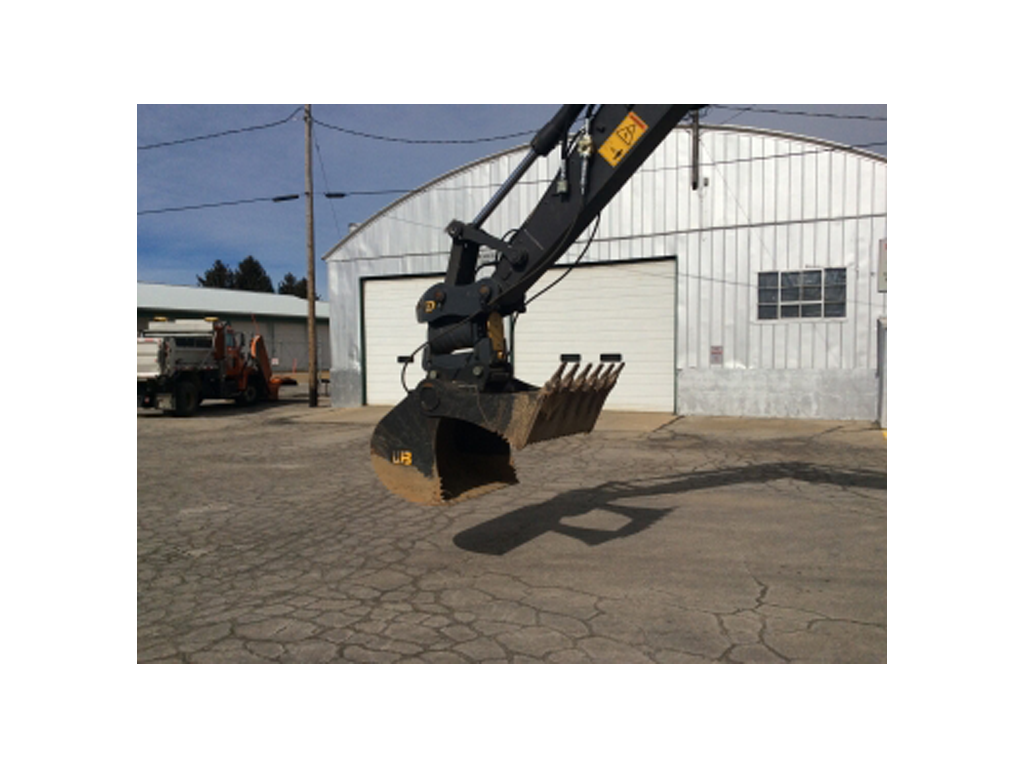

- 120° of jaw movement
- Consistent clamping force through jaw’s full range of motion
- Equal force exerted at both sides prevents jaw twisting
- Standard OEM lugging
- Quick-coupler compatible
- Uses existing auxiliary hydraulic circuit
- Clamping force approximately 3x of standard thumb
| PART # | WIDTH | CAPACITY | # OF TEETH | WEIGHT |
| PG07-24-14T | 24" | 0.46 | 4 | 1,330 |
| PG07-30-14T | 30" | 0.62 | 4 | 1,460 |
| PG07-36-14T | 36" | 0.77 | 5 | 1,670 |
12 METRIC TONS
| MAKE / WEIGHT CLASS | 12MT (24,000 - 33,000 LBS.) |
| CASE | CX130, CX145D, CX140E |
| CAT | 311, 313, 314F, 315F (A-Linkage) |
| DOOSAN | DX140LC-5, DX140LCR-5, DX140W-5 |
| HITACHI | ZX130 |
| HYUNDAI | HX140, HX145, HX220 LR |
| JOHN DEERE | 130G, 135G, 130P |
| KOBELCO | SK140, ED160 |
| KOMATSU | PC138 |
| LIEBHERR | |
| LINK BELT | 130X4, 145X4, 210X4 LR |
| SANY | SY135, SY235 LR, SY265 LR |
| TAKEUCHI | TB1140, TB2150 |
| VOLVO | EW140, EC140, ECR145 |
15 METRIC TONS
| MAKE / WEIGHT CLASS | 15MT (33,000 - 42,000 LBS.) |
| CASE | CX160, CX170E, CX190E |
| CAT | 315D, 316F, 318F, M318F |
| DOOSAN | DX180LC-5, DX190W-5 |
| HITACHI | ZX160 |
| HYUNDAI | HX160, HX180 |
| JOHN DEERE | 160G, 160P |
| KOBELCO | ED195, SK170 |
| KOMATSU | PC170 |
| LIEBHERR | |
| LINK BELT | 160X4 |
| SANY | |
| TAKEUCHI | |
| VOLVO | EW160, EW180, EC160, EC180 |
