EZG-EX25-PRO-3

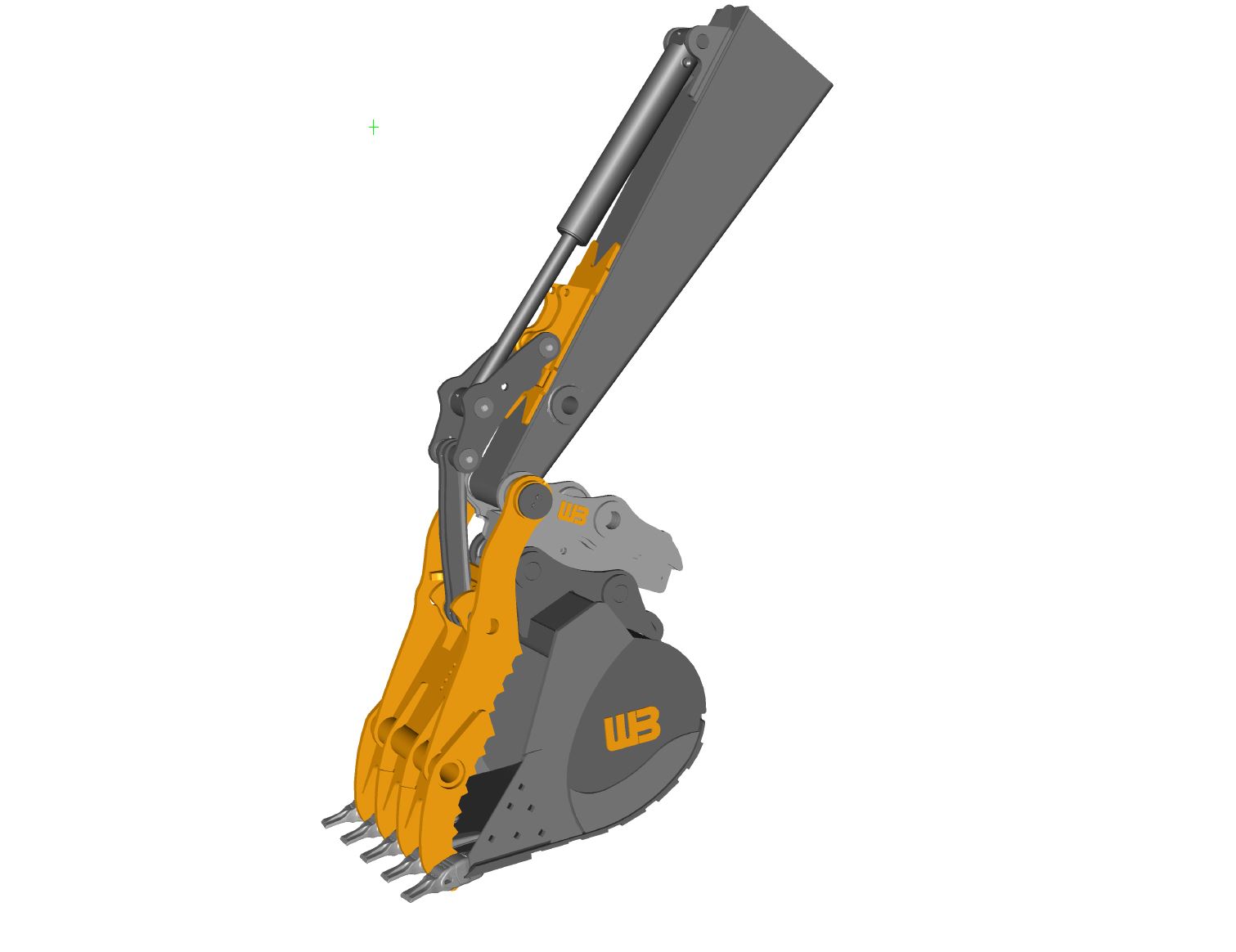

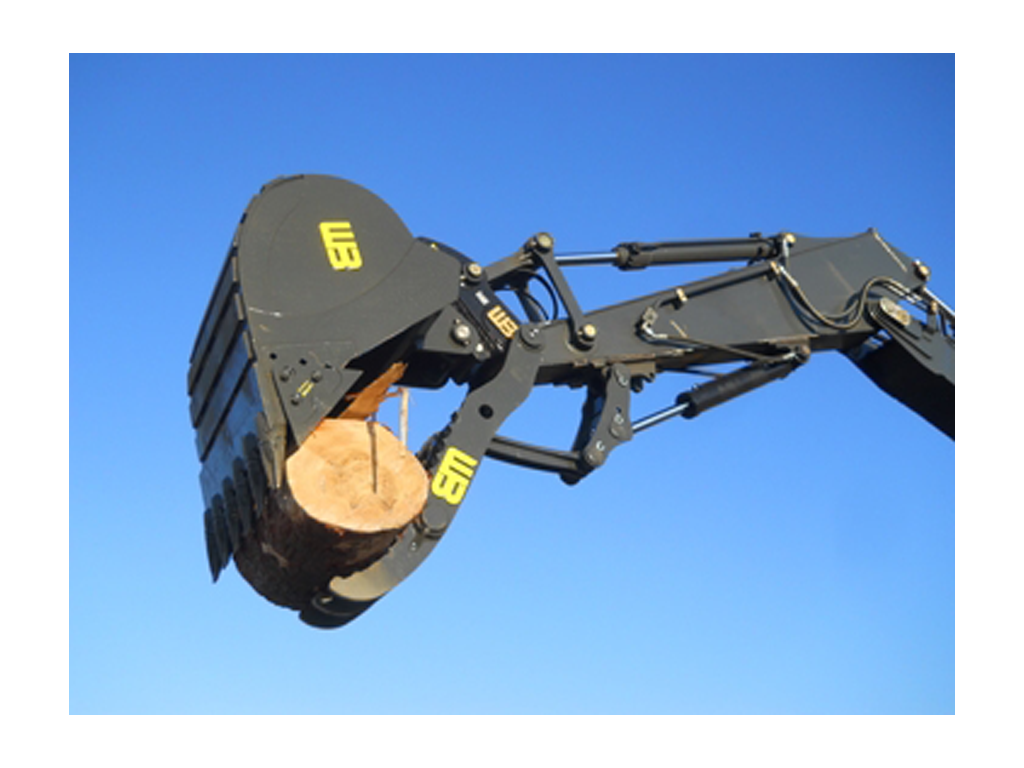

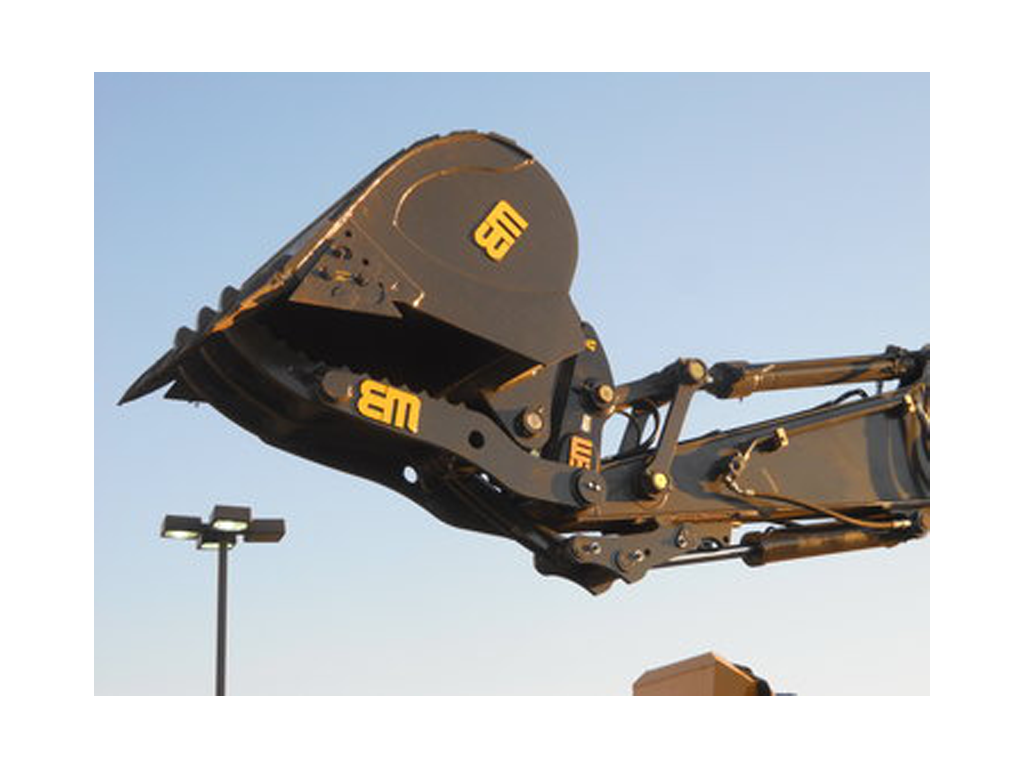

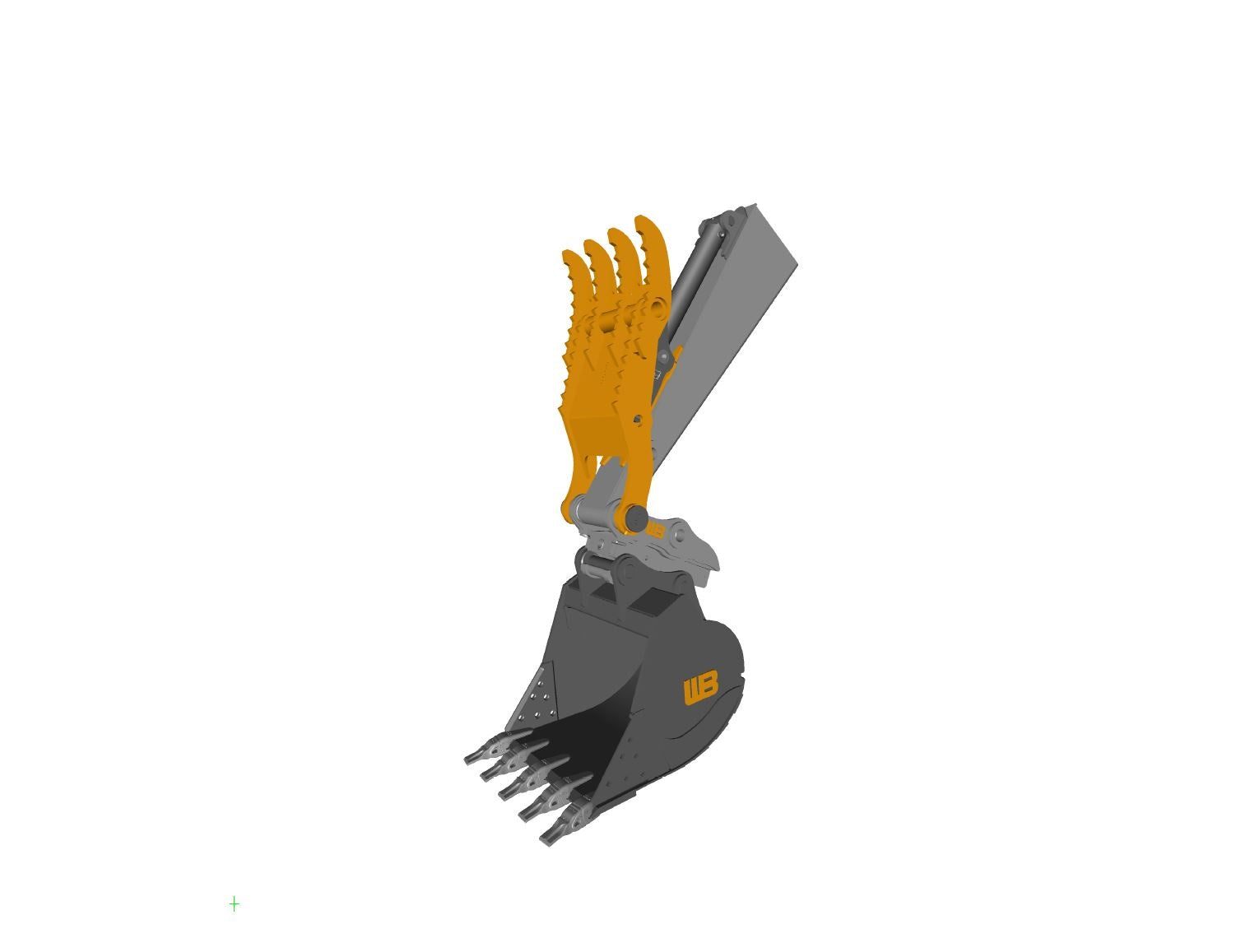

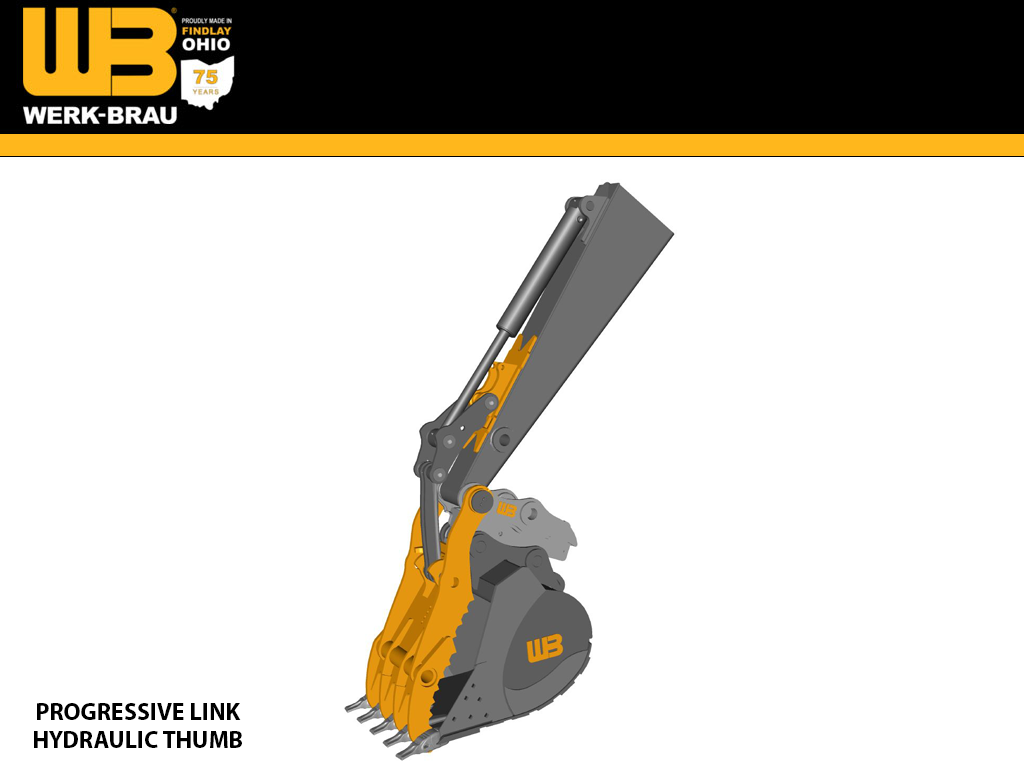

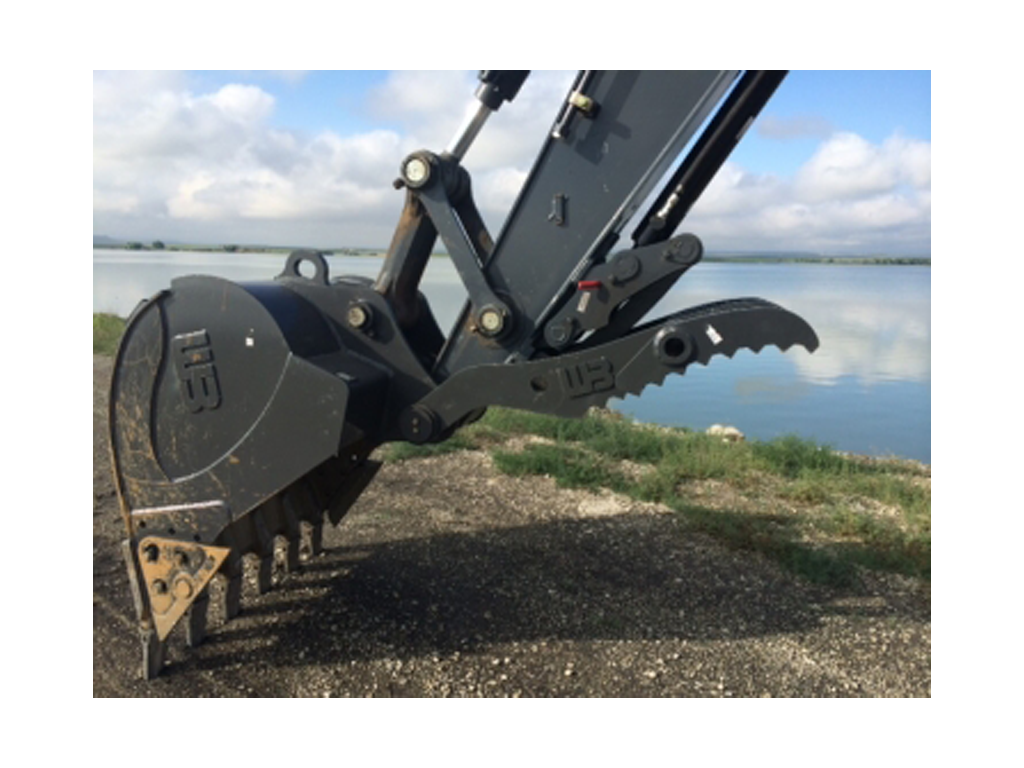

WERK-BRAU Progressive Link hydraulic thumb for excavators 50,000 - 59,000 lbs. (25MT)
$15,927.00 - $16,380.00
11/24
PROGRESSIVE LINK HYDRAULIC THUMBS
Recommended Applications
The Werk-Brau Progressive Linkage (Pro-Link) Thumb features a full 180 degrees of rotation making it ideal for handling and manipulating a wide variety of material, debris, rocks, logs, and irregular shaped objects. Each tine has a minimum 3 points of grip to keep materials secure.
Quality Construction
T-1 steel is used in all critical and high wear components. The Pro-Link features hardened pins and bushing used at all pivot points.
Sizes Available
Various models available to match machines capacities.
Features
- 180 degree standard rotation
- linkage is self contained
- does not include jumper hose kit
- info form must be completed when thumb is working with any non Werk-Brau attachment
| PART # | NUMBER OF TINES | WEIGHT |
| EZG-EX25-PRO-3 | 3 | 1,500 |
| EZG-EX25-PRO-4 | 4 | 1,540 |
| EZG-EX25-PRO-5 | 5 | 1,640 |
| MAKE / WEIGHT CLASS | 25MT (50,000 - 59,000 LBS.) |
| CASE | CX250, CX260E |
| CAT | 325, 326F |
| DOOSAN | DX255LC-5 |
| HITACHI | ZX240, ZX250 |
| HYUNDAI | HX260 |
| JOHN DEERE | 250G, 250P |
| KOBELCO | SK260LC |
| KOMATSU | PC240 |
| LIEBHERR | R 916 L, R 924 L, R 934 CD |
| LINK BELT | 250X3, 250X4 |
| SANY | SY235, SY265 |
| TAKEUCHI | |
| VOLVO | EC240, EC250 |
