WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)
WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)

E12VRB241022

WERK BRAU Reverse V-Line Rock bucket for excavators 24,000 - 42,000 lbs (12 & 15MT)

$10,233.00

Business Financing Available

10/24

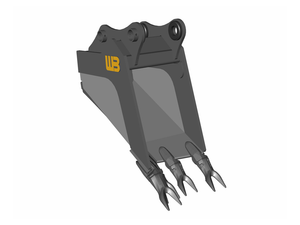

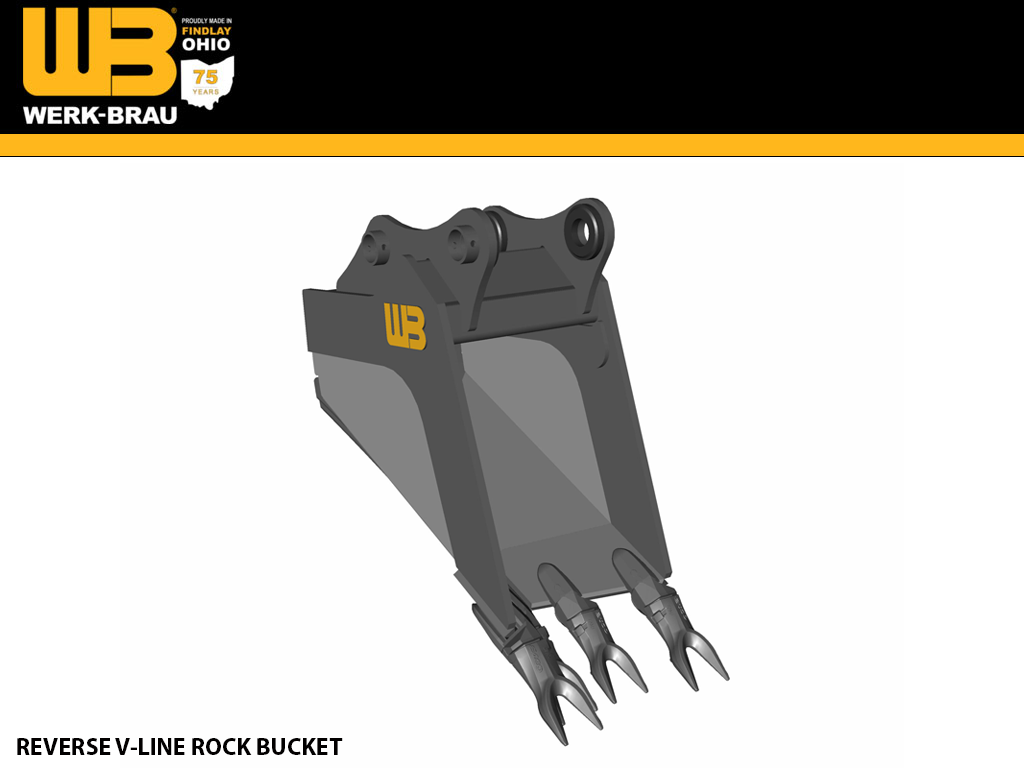

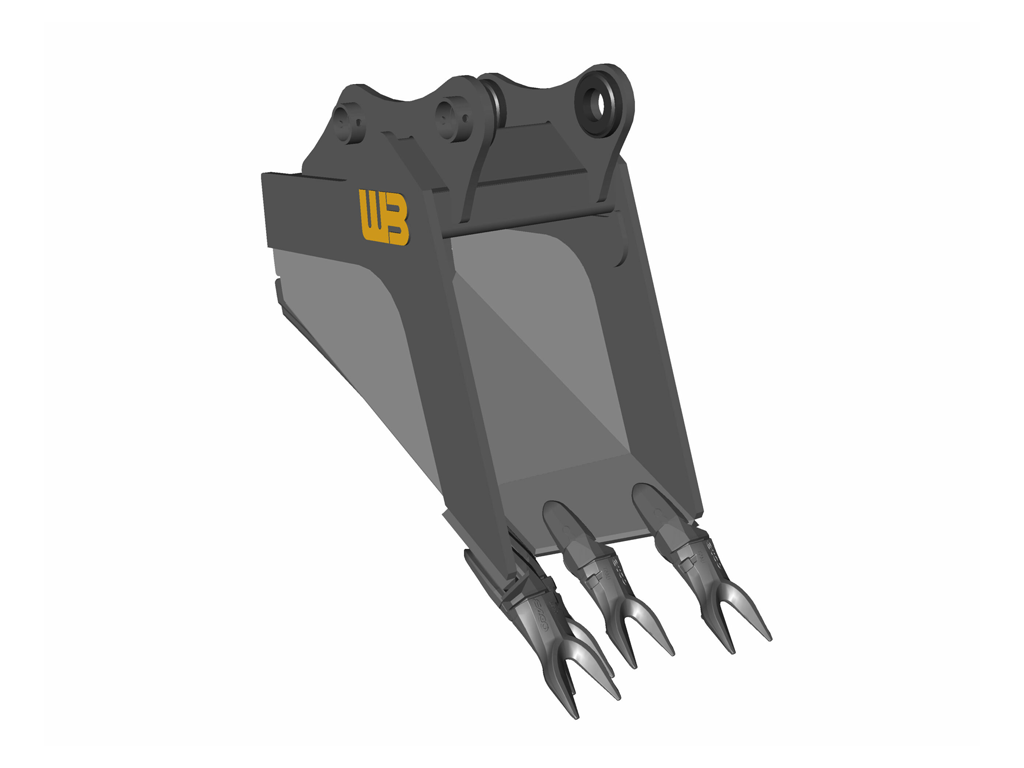

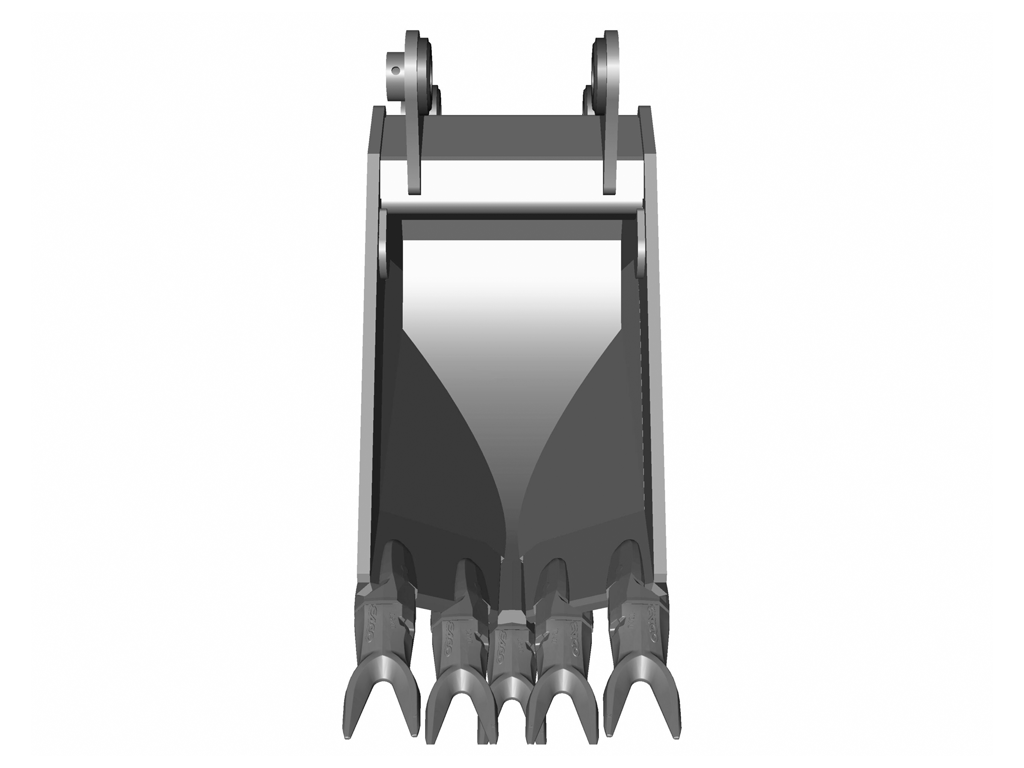

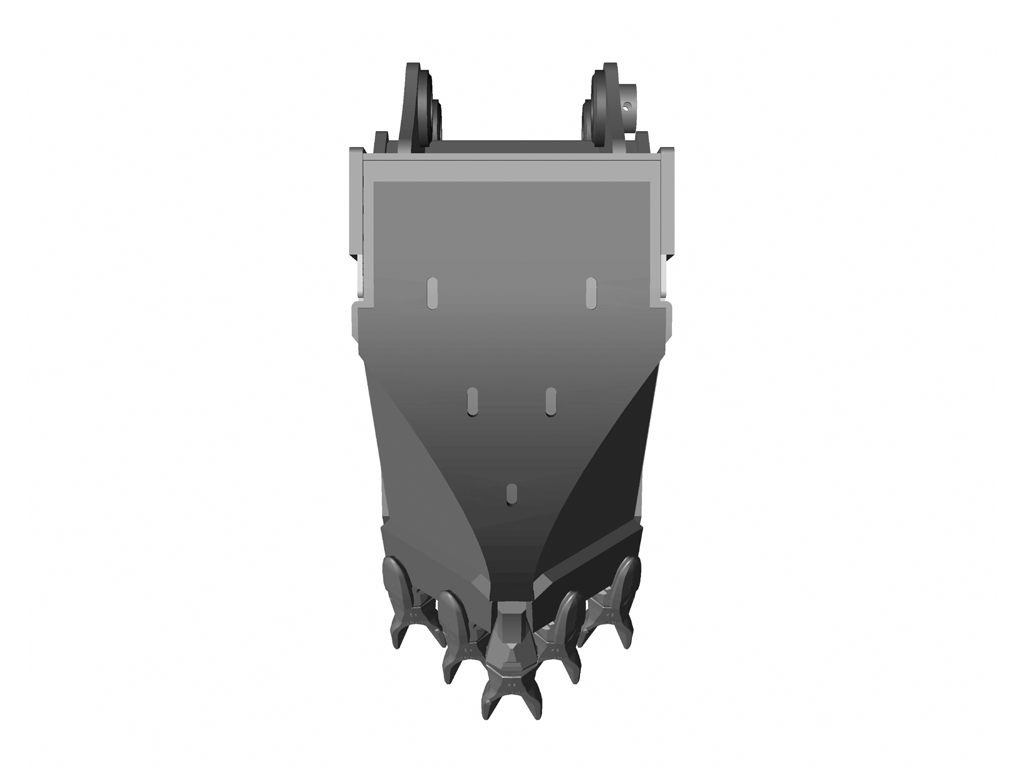

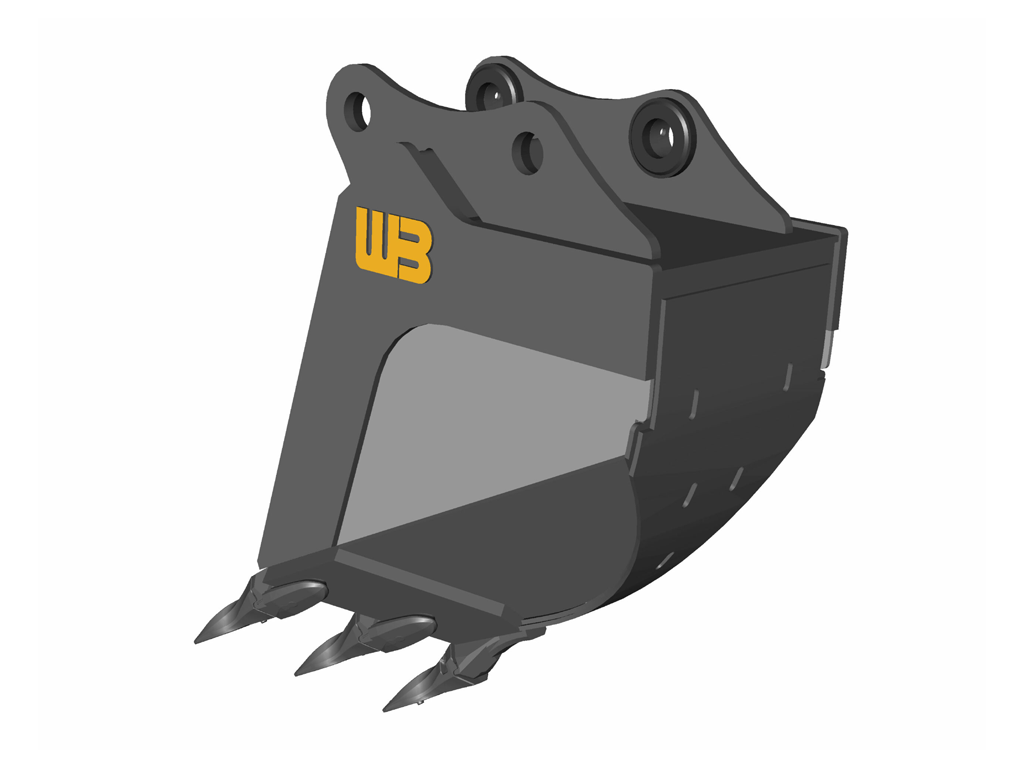

REVERSE V-LINE ROCK BUCKET

Recommended Applications

Werk-Brau's V-Line Rock Bucket is designed for excavating frozen ground or layered rock such as shale or caliche. The reverse V shaped design enables the machine to exert all of its force on all teeth at once to gain more surface area for ripping through strata. This is a severe duty model for heavier applications, involving tougher and more abrasive rock. These kinds of buckets can also be used for moderate prying.

Quality Construction

T-1 steel is utilized in all critical or high wear components. Oversized cutting edges ensure long life in severe conditions. This bucket features steel walls thicker than other buckets, with heavily reinforced wear areas. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Twin pointed and single offset point teeth are set in a manner to provide maximum penetration.

Standard Sizes

0.35 cu. yd. to 1.47 cu. yd. of various widths available.

Additional Features

Tighter tip radius appropriate to the machine class to maximize breakout force

PLEASE CALL FOR A FREIGHT QUOTE
PART # WIDTH TOOTH
E12VRB241022 24"

1U3352WTL

(1) TWIN TIGER

(2) LEFT TIGER

(2) RIGHT TIGER


12 METRIC TONS

MAKE / WEIGHT CLASS 12MT (24,000 - 33,000 LBS.)
CASE CX130, CX145D, CX140E
CAT 311, 313, 314F, 315F (A-Linkage)
DOOSAN DX140LC-5, DX140LCR-5, DX140W-5
HITACHI ZX130
HYUNDAI HX140, HX145, HX220 LR
JOHN DEERE 130G, 135G, 130P
KOBELCO SK140, ED160
KOMATSU PC138
LIEBHERR
LINK BELT 130X4, 145X4, 210X4 LR
SANY SY135, SY235 LR, SY265 LR
TAKEUCHI TB1140, TB2150
VOLVO EW140, EC140, ECR145



 15 METRIC TONS

MAKE / WEIGHT CLASS 15MT (33,000 - 42,000 LBS.)
CASE CX160, CX170E, CX190E
CAT 315D, 316F, 318F, M318F
DOOSAN DX180LC-5, DX190W-5
HITACHI ZX160
HYUNDAI HX160, HX180
JOHN DEERE 160G, 160P
KOBELCO ED195, SK170
KOMATSU PC170
LIEBHERR
LINK BELT 160X4
SANY
TAKEUCHI
VOLVO EW160, EW180, EC160, EC180
