2MSD12

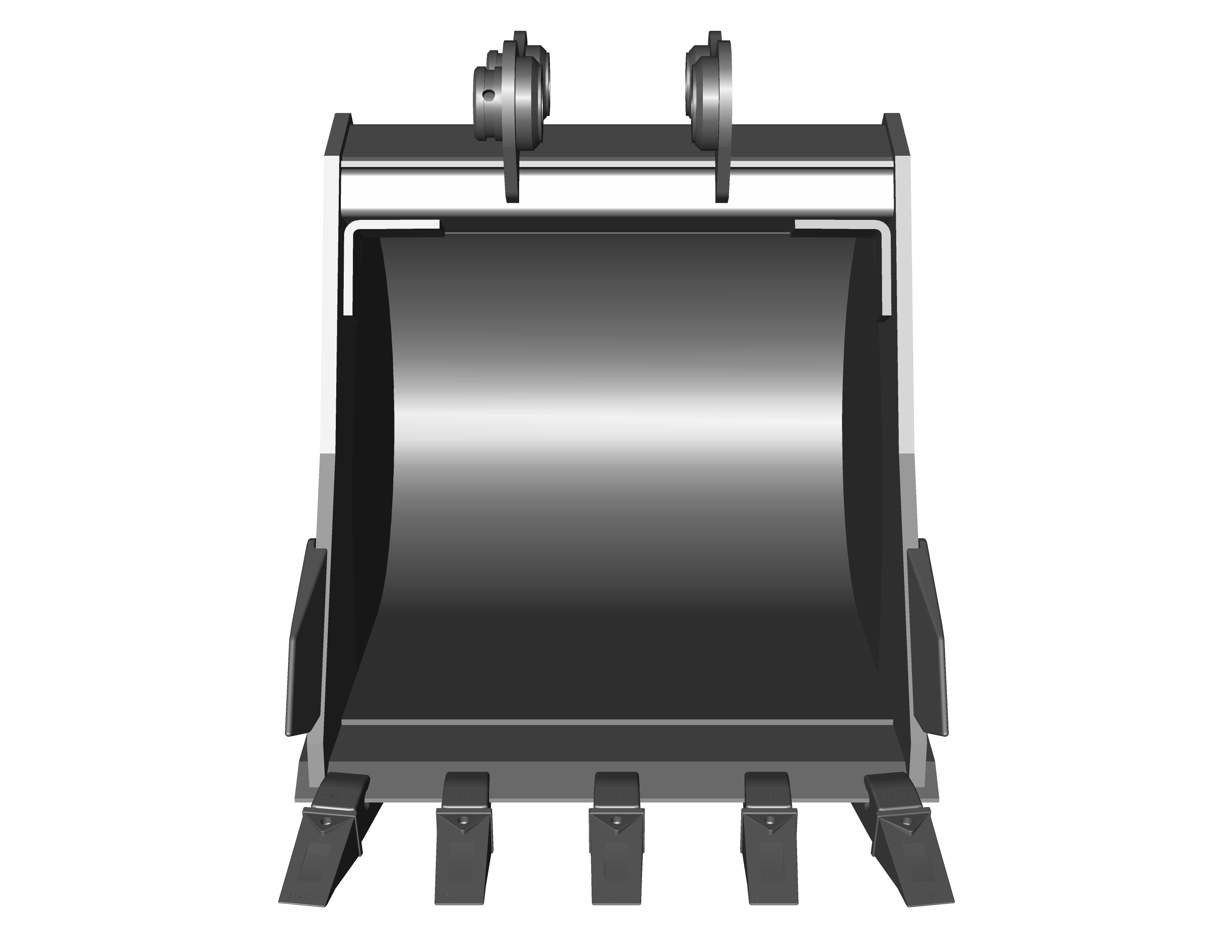

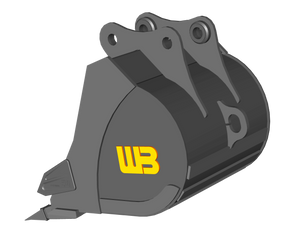

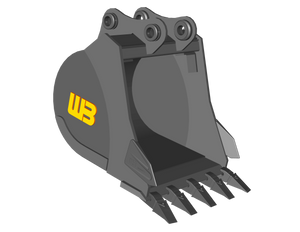

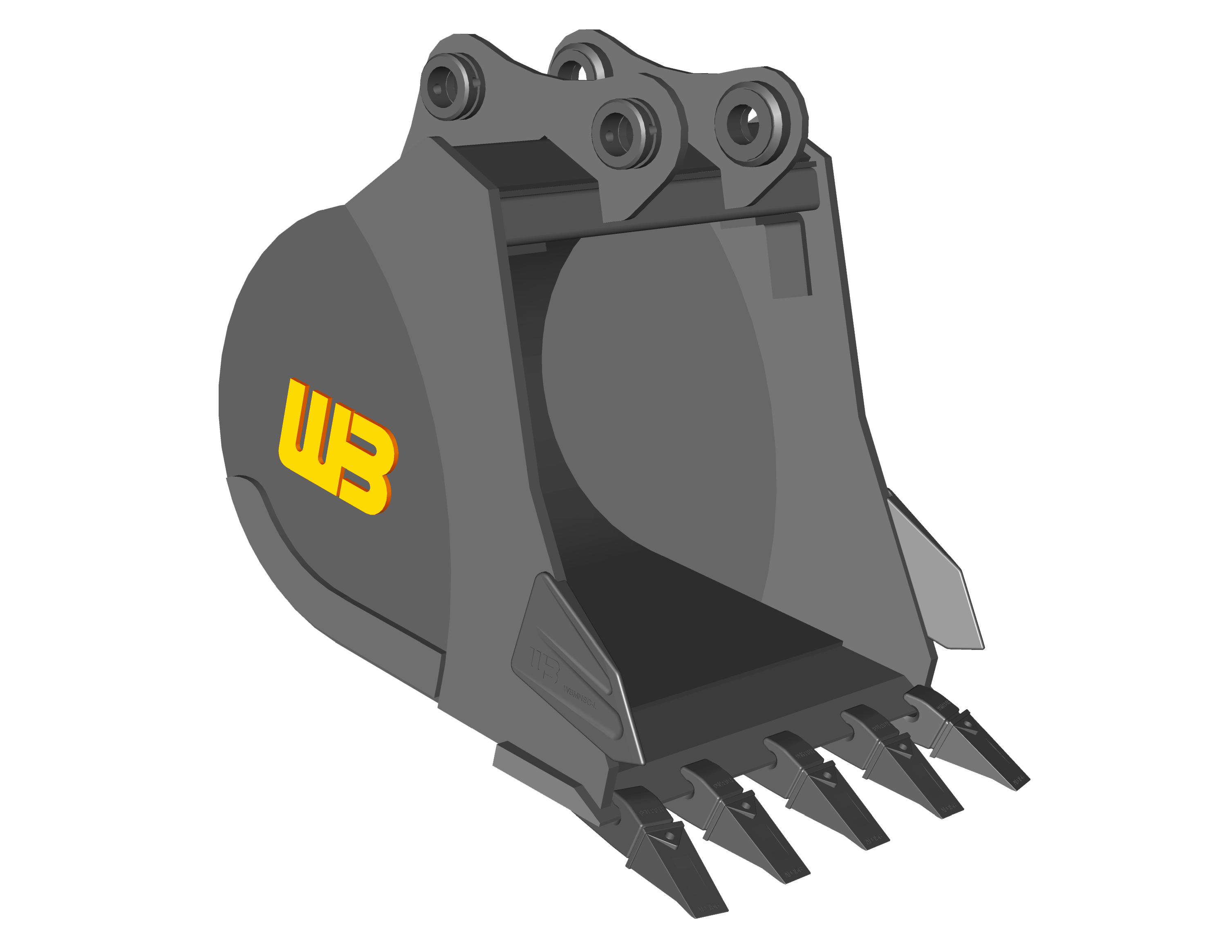

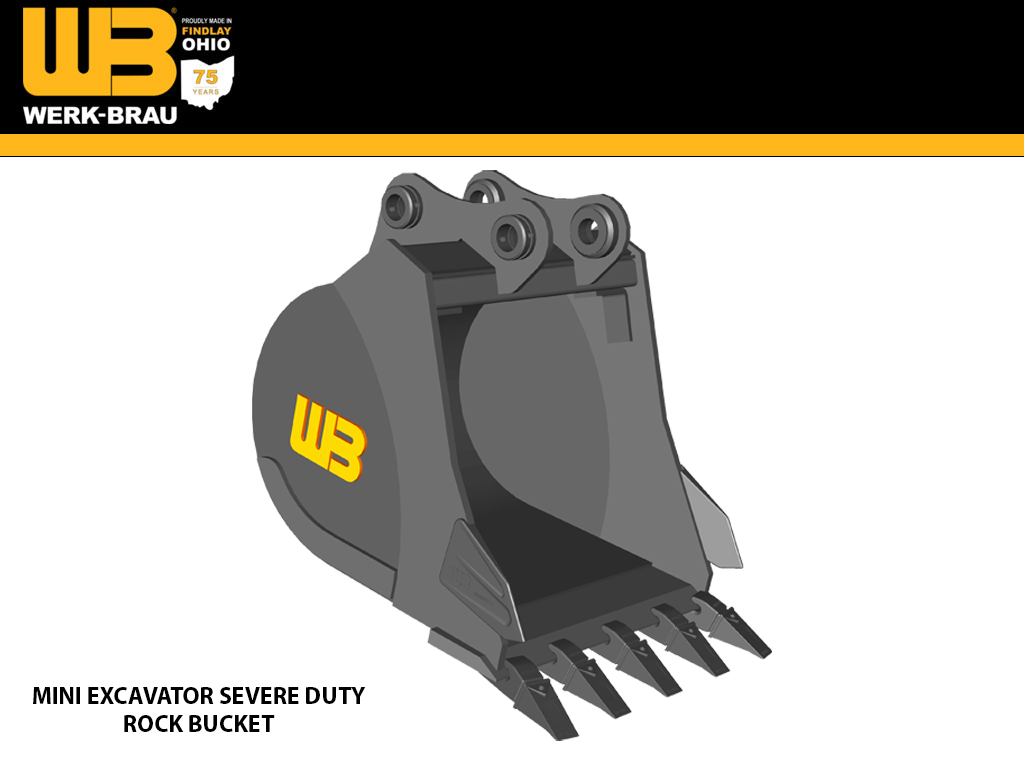

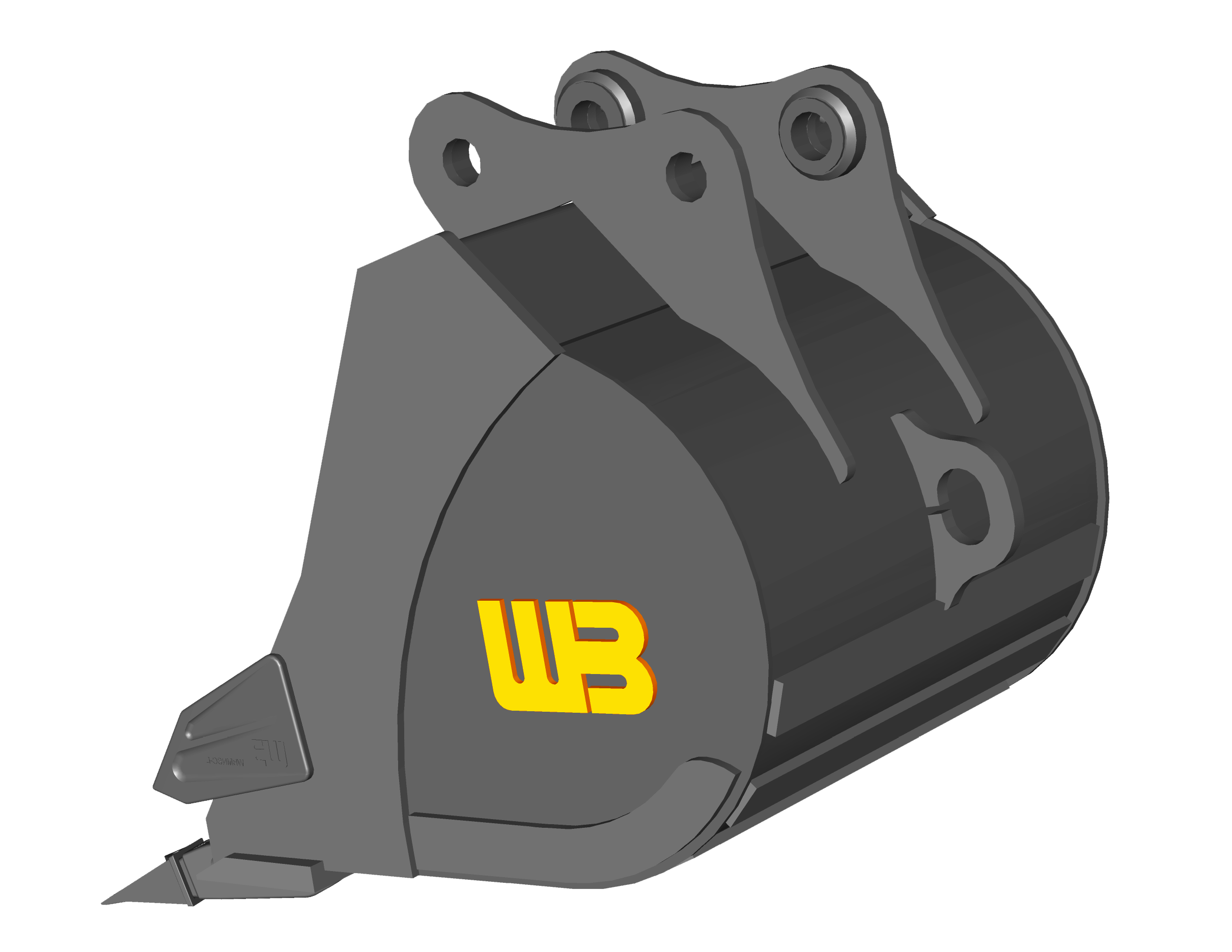

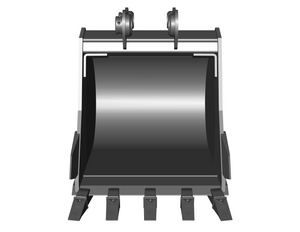

WERK-BRAU Severe Duty Rock Bucket for 7,500 - 11,000 lbs. Excavators. (Mini 2)

Size
Weld on side cutters

1/24

WERK-BRAU SEVERE DUTY ROCK BUCKETS

MINI EXCAVATOR



Recommended Applications

Werk-Brau's severe duty buckets are specifically designed with an aggressive dig angle to effectively excavate in the toughest conditions. Ideal applications for this bucket include but are not limited to demolition work, shot rock, high abrasive applications, and moderate prying. When paired with a thumb, this bucket can also be used for material handling.

Quality Construction

Increased material thickness in most components add life and durability in the most extreme digging conditions. T-1 steel is utilized in all critical or high wear components. This bucket features tapered side plates, horizontal wear straps, and an extra thick cutting edge is backed by a wear plate that covers the entire bucket bottom. The cutter bit is made from heavy duty cast material. Side wear plates protect the bucket sides in the high wear areas and extend the buckets operation life. The tip radius on the severe duty excavator bucket is to or within O.E.M. specifications. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Oversized OEM approved cast teeth and shanks are standard.

Standard Sizes

Standard widths range from 12" to 36" in 6" increments -- special widths available on request. Standard capacity available in all most popular widths.

Additional Features

Bolt-on side cutters are highly recommended for added endurance. Adjustable bushings are available upon request. Box rippers are available and can be installed upon request. Special designs and capacities are available, please request a quote from your local dealer.

PART # WIDTH CAPACITY NO. TEETH WEIGHT
2MSD12 12" 2.60
3 320
2MSD16 16" 3.50
3 330
2MSD18 18" 3.90
4 350
2MSD20 20" 4.30
4
380
2MSD24 24" 5.20
5 420
2MSD30 30" 6.50
6 460
MAKE / WEIGHT CLASS MINI 2 (7,500 - 11,000 LBS.)
BOBCAT
CASE
CAT
DOOSAN
DITCH WITCH
GEHL
HITACHI
HYUNDAI
IHI
JCB
JOHN DEERE 60G
KOBELCO
KOMATSU
KUBOTA
LINK BELT
MUSTANG
NEW HOLLAND
SANY
TAKEUCHI
VOLVO
YANMAR
WACKER NEUSON .
