WERK-BRAU Severe Duty Rock buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Severe Duty Rock buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Severe Duty Rock buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Severe Duty Rock buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Severe Duty Rock buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Severe Duty Rock buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Severe Duty Rock buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Severe Duty Rock buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Severe Duty Rock buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Severe Duty Rock buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)

WL3.5R105-3.00

WERK-BRAU Severe Duty Rock buckets for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)

$25,587.00 - $30,533.00

Business Financing Available

Capacity
Lip

2/24

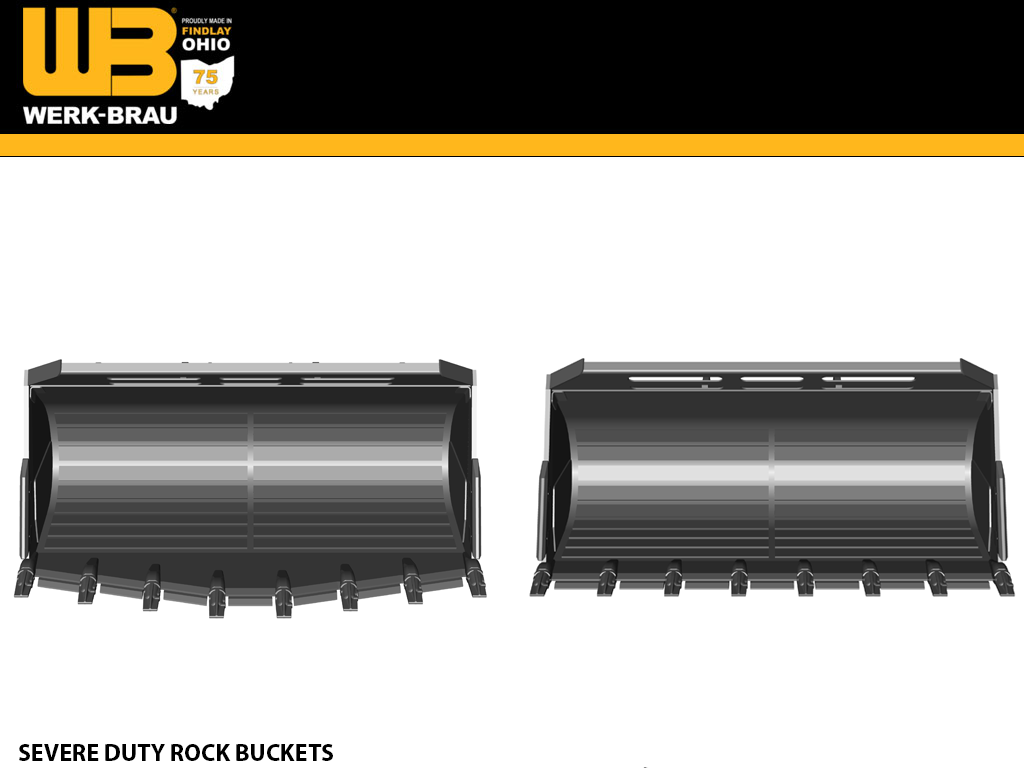

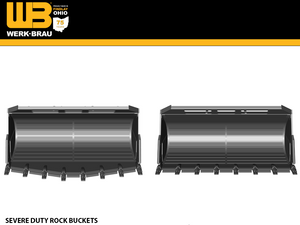

SEVERE DUTY ROCK BUCKET

Recommended Applications

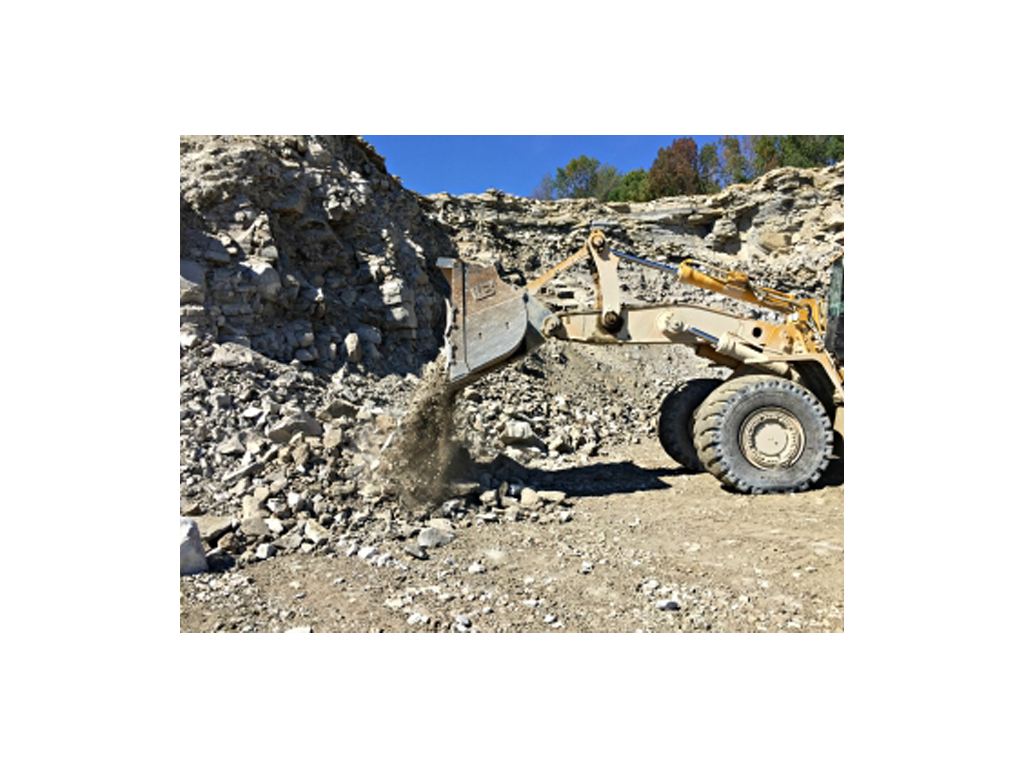

Specifically designed to penetrate severe digging applications or re-handle loose rock.

Quality Construction

High strength, T-1 steel is utilized in all critical wear points of the bucket. Abrasion-resistant steel is used in wear-straps to reinforce bottom of bucket. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

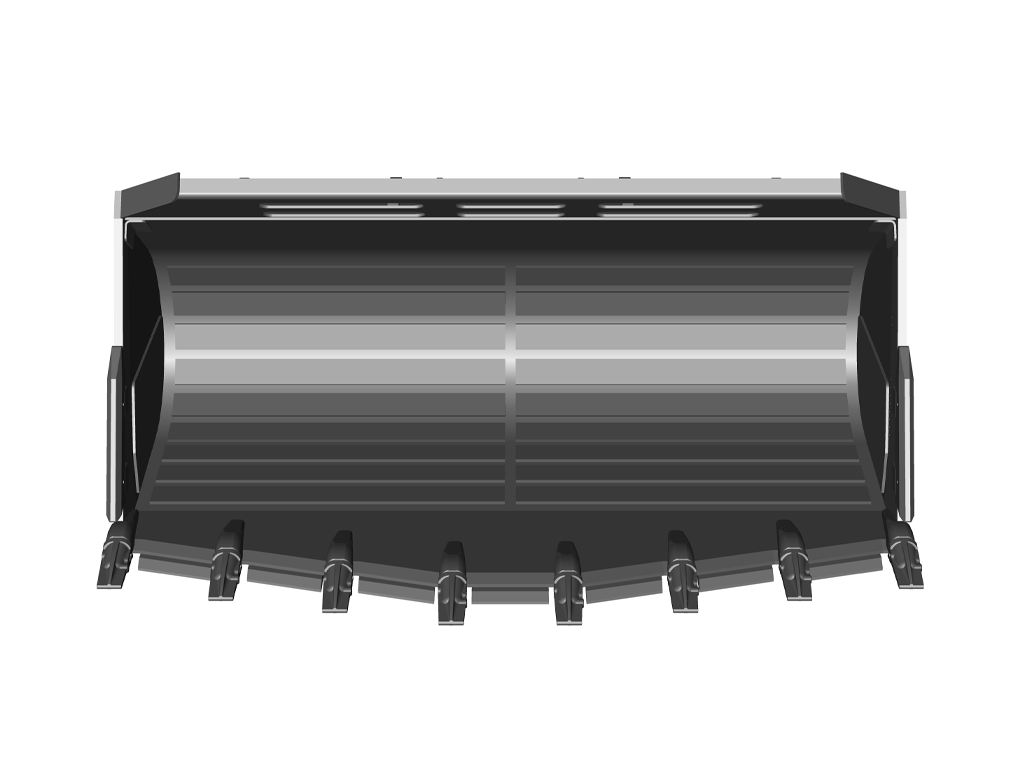

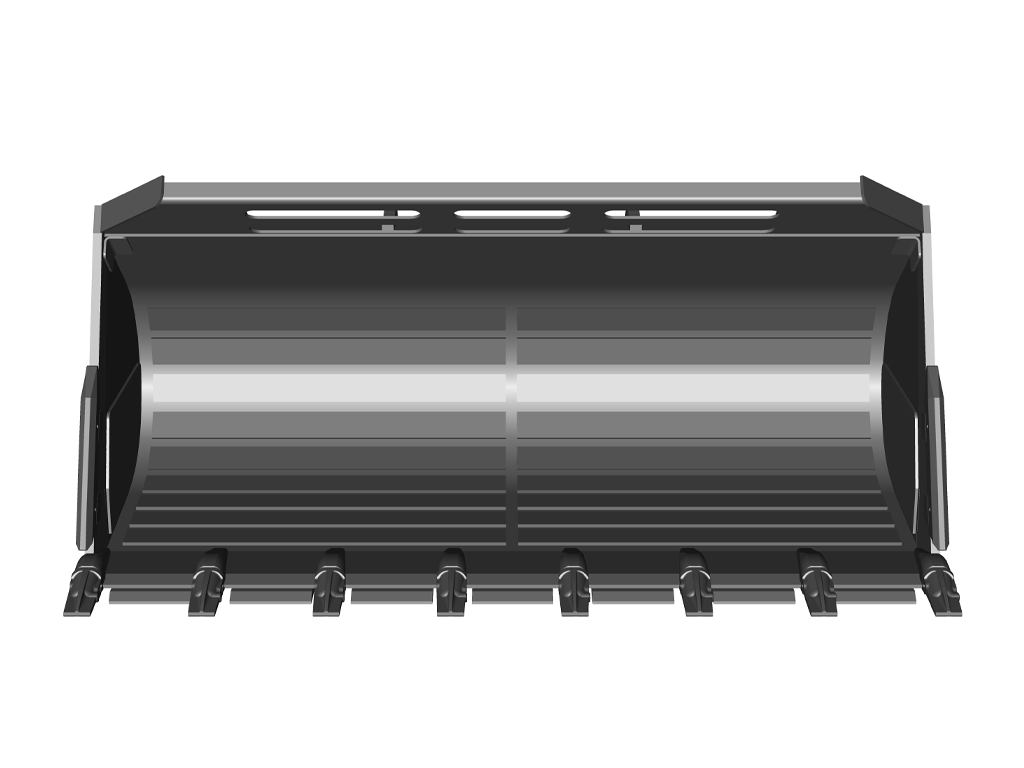

2.00 cu. yd to 10.00 cu. yd. Widths range from 100" - 144". Other capacities and widths are available upon quotation. Available in spade nose or straight edge options.

Additional Features

Available with replaceable bolt-on cutting edge upon request. Weld-on teeth are standard equipment. Other tooth selections available. Easily mounts up to Werk-Brau front coupler or available with pin-up connection. Special designs and capacities are available.

  • Internal double bottom
  • Lifting loops
  • Bolt on side cutters standard
  • Slotted spill guard for better vision
  • Standard with weld on teeth, shrouds and segments
  •  Bolt on cutting edge optional replacement
PART # WIDTH # OF TEETH  CAPACITY WEIGHT
WL3.5R105-3.00 105" 8 3.00 4,200
WL3.5R105-3.00SP 105" 8 3.00 4,600
WL3.5R105-3.50 105" 8 3.50 4,600
WL3.5R105-3.50SP 105" 8 3.50 5,000
CLASS 3.5

CLASS 3.5 (30,000 - 33,000 LBS) MODEL
CASE 721G
CAT 938, IT38
DEVELON DL250-7, DL280-7
HITACHI ZW180
HYUNDAI HL955, HL757
JCB 436, 437
JOHN DEERE 624
KOMATSU WA320
KUBOTA
LIEBHERR L546, L550X
LINK-BELT
NEW HOLLAND LW170
SANY
TAKEUCHI
VOLVO L90
WACKER NEUSON
YANMAR
