WERK-BRAU Severe Duty Rock buckets for Wheel loaders 33,000 - 43,000 lbs. (class 4)
$29,507.00 - $36,447.00
2/24

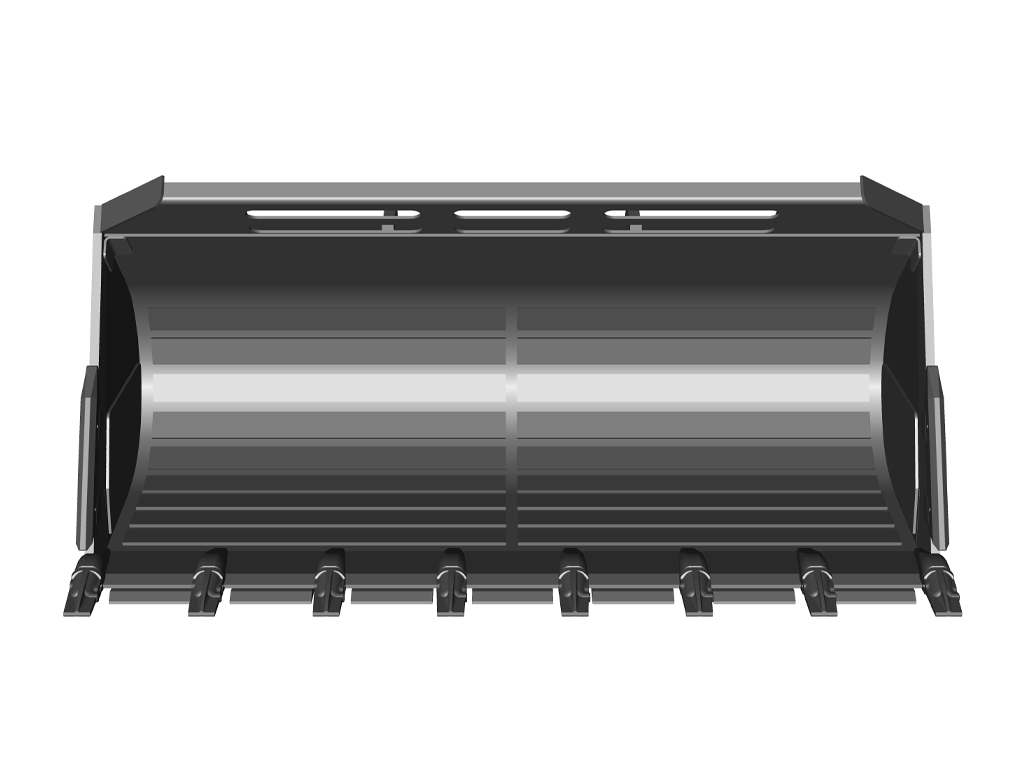

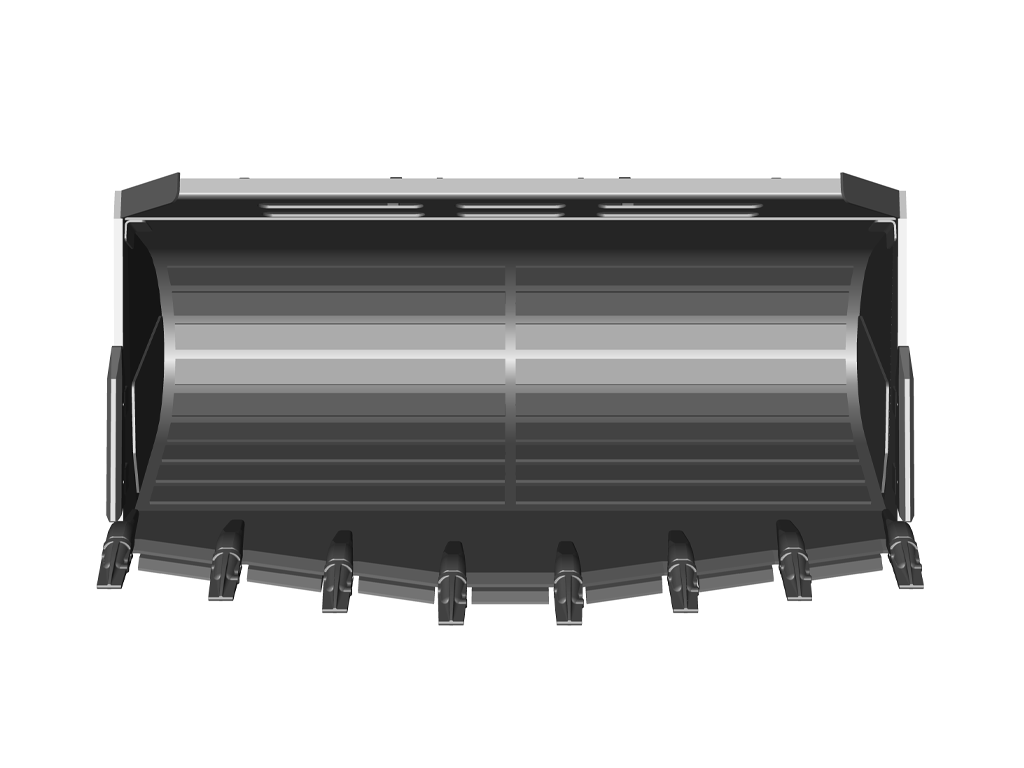

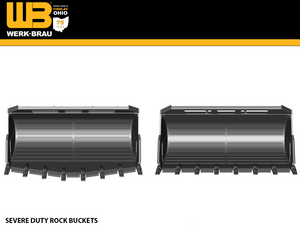

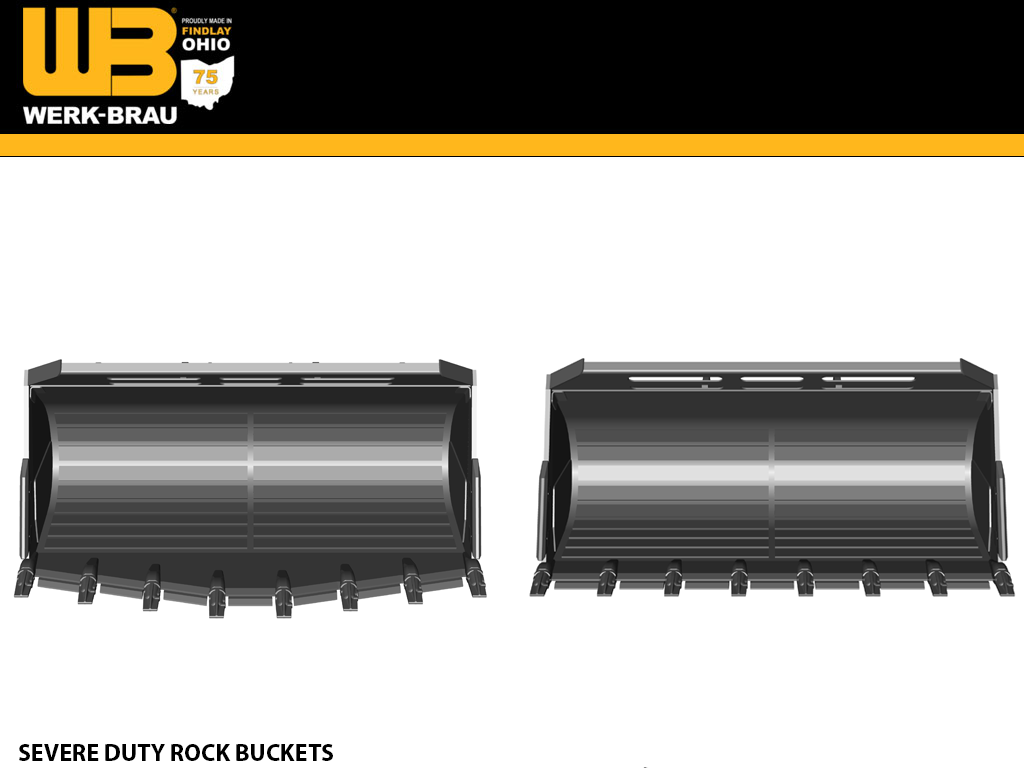

SEVERE DUTY ROCK BUCKET
Recommended Applications
Specifically designed to penetrate severe digging applications or re-handle loose rock.
Quality Construction
High strength, T-1 steel is utilized in all critical wear points of the bucket. Abrasion-resistant steel is used in wear-straps to reinforce bottom of bucket. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Standard Sizes
2.00 cu. yd to 10.00 cu. yd. Widths range from 100" - 144". Other capacities and widths are available upon quotation. Available in spade nose or straight edge options.
Additional Features
Available with replaceable bolt-on cutting edge upon request. Weld-on teeth are standard equipment. Other tooth selections available. Easily mounts up to Werk-Brau front coupler or available with pin-up connection. Special designs and capacities are available.
- Internal double bottom
- Lifting loops
- Bolt on side cutters standard
- Slotted spill guard for better vision
- Standard with weld on teeth, shrouds and segments
- Bolt on cutting edge optional replacement
| PART # | WIDTH | # OF TEETH | CAPACITY | WEIGHT |
| WL4R117-4.00 | 117" | 8 | 4.00 | 4,600 |
| WL4R117-4.00SP | 117" | 8 | 4.00 | 5,200 |
| WL4R117-4.50 | 117" | 8 | 4.50 | 5,200 |
| WL4R117-4.50SP | 117" | 8 | 4.50 | 5,500 |
CLASS 4
| CLASS 4 (33,000 - 43,000 LBS) | MODEL |
| CASE | 821G, 921G |
| CAT | 950, 960, 962, IT62 |
| DEVELON | DL300-5, DL320-7, DL350-5, DL380-7 |
| HITACHI | ZW220, ZW250 |
| HYUNDAI | HL960, HL760 |
| JCB | 456, 457 |
| JOHN DEERE | 644, 724 |
| KOMATSU | WA380, WA430 |
| KUBOTA | |
| LIEBHERR | L556X |
| LINK-BELT | L150 |
| NEW HOLLAND | LW190 |
| SANY | SW405 |
| TAKEUCHI | |
| VOLVO | L110, L120 |
| WACKER NEUSON | |
| YANMAR |
