EX30SK48

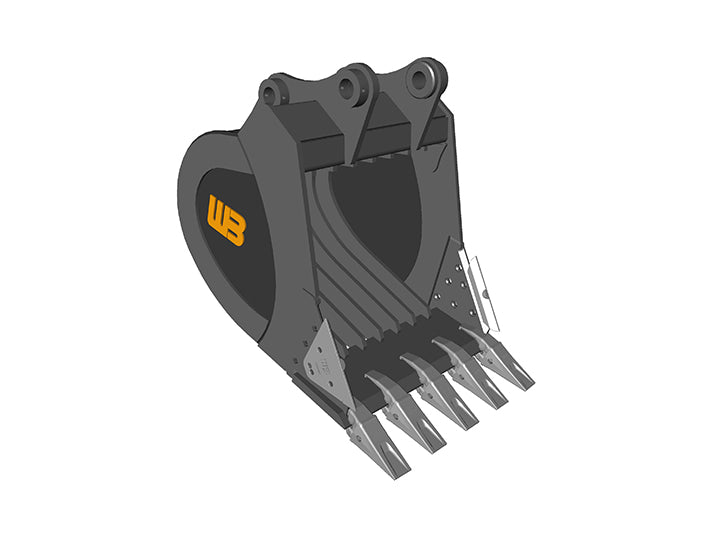

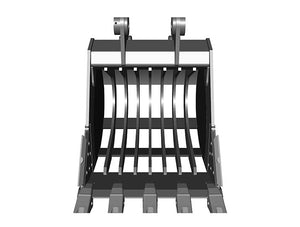

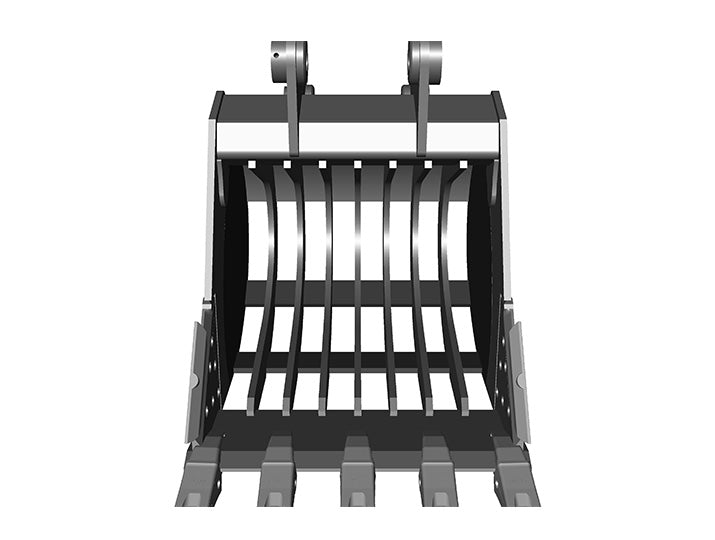

WERK-BRAU skeleton bucket for 59,000 68,000 lbs. Excavators (30MT)

Size

11/24

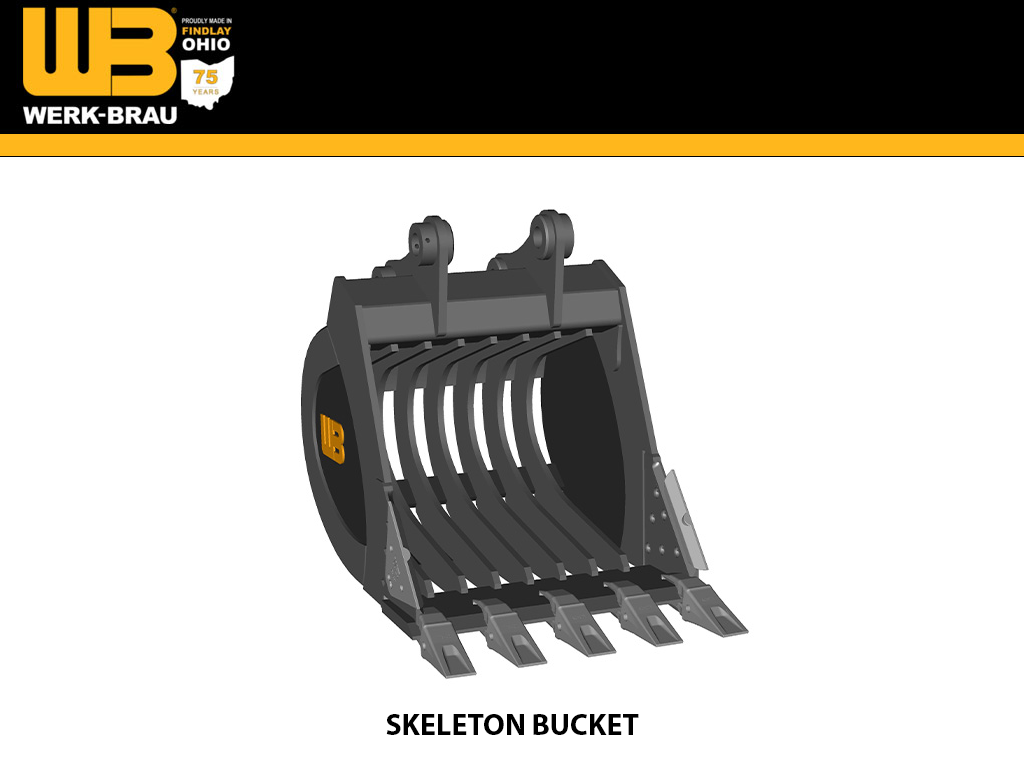

Skeleton Bucket

Recommended Applications

Specifically designed to handle loose rock, separating large rock and or debris from smaller lose material. Engineered to dig in heavy duty rock applications.

Quality Construction

High strength, T-1 steel is utilized in all critical wear points of the bucket. Abrasion-resistant steel is used in wear-straps to reinforce bottom of bucket. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

Various capacities and widths are available.

Additional Features

Available with your choice of Weld-on teeth, standard with this bucket, replaceable bolt-on cutting edge. Other tooth selections available. Please request a quote from your local dealer.


PART NUMBER  WIDTH CAPACITY NO. OF TEETH WEIGHT
EX30SK48
48"
1.48
5 3,050
EX30SK54 54" 1.66
6 3,310
EX30SK60 60" 1.85 6 3,600

30MT

MAKE / WEIGHT CLASS 30MT (59,500 - 68,000 LBS.)
CASE CX300, CX365E
CAT 326, 328, 329, 335F, CB-LINKAGE
DOOSAN DX300LC-5, DX300LC-5SLR
HITACHI ZX300, ZX345
HYUNDAI HX300
JOHN DEERE 300G, 345G, 300P
KOBELCO SK300
KOMATSU PC270, PC290, PC308
LIEBHERR
LINK BELT 300X3, 300X4, 355X4
SANY SY305, SY335
TAKEUCHI
VOLVO EC290, EC300, EC305, ECR355
