EX35SK48

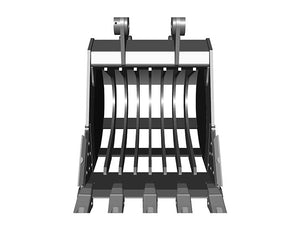

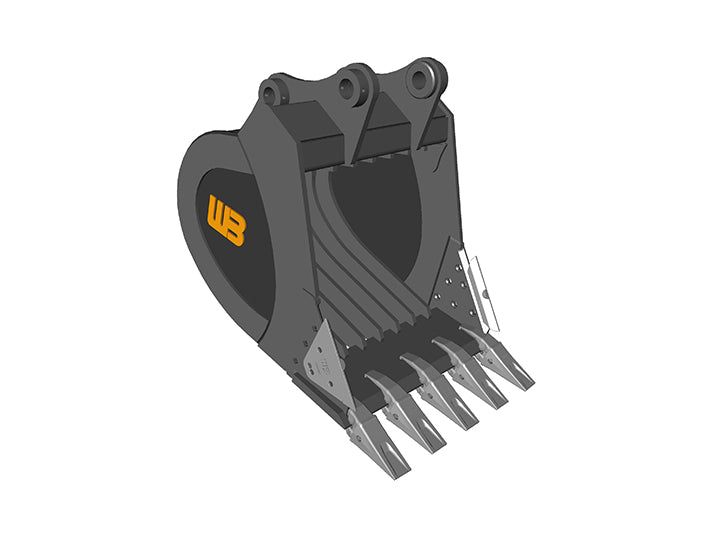

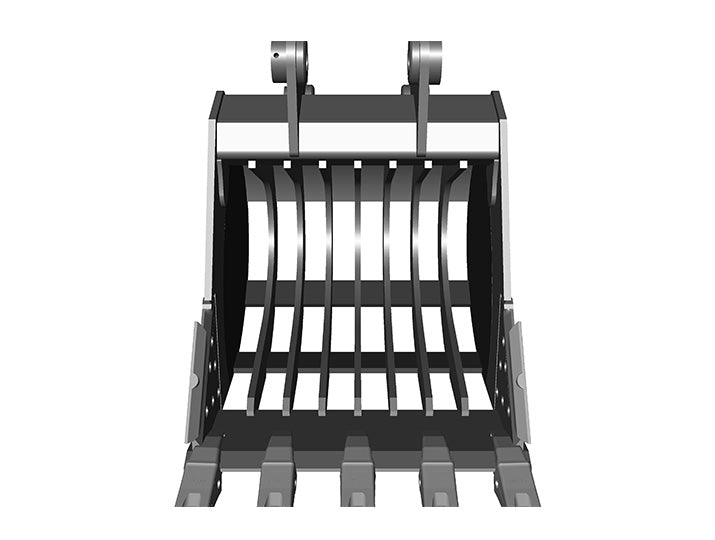

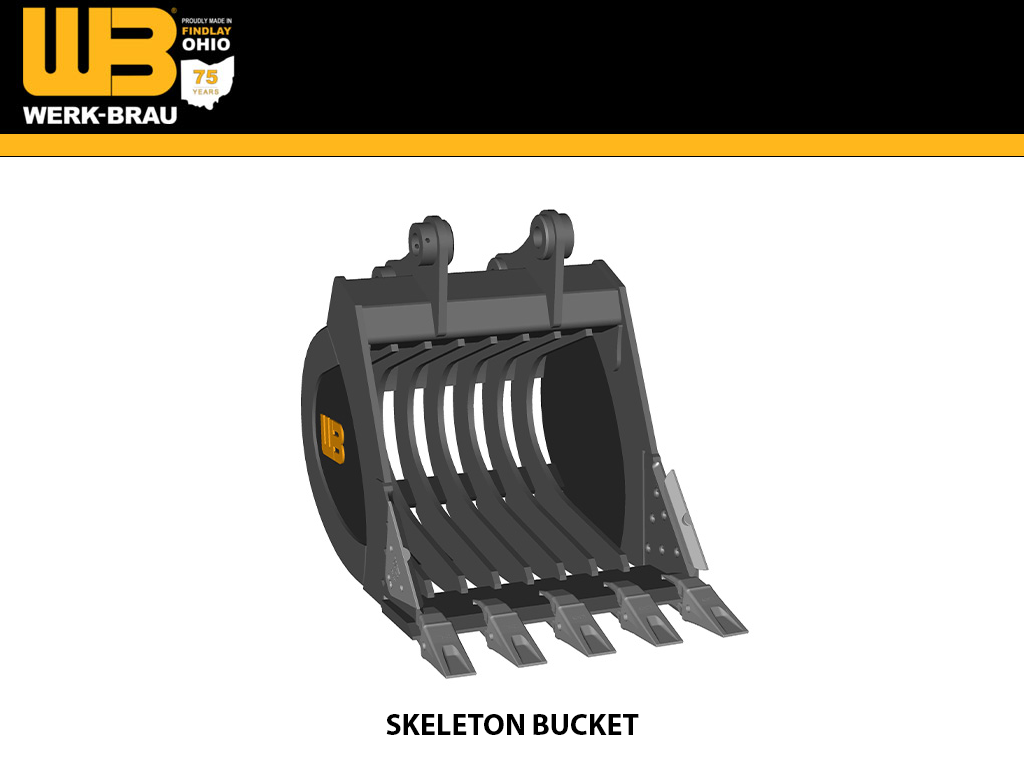

WERK-BRAU skeleton bucket for 68,000 - 82,000 lbs. Excavators (35MT)

Size

11/24

Skeleton Bucket

Recommended Applications

Specifically designed to handle loose rock, separating large rock and or debris from smaller lose material. Engineered to dig in heavy duty rock applications.

Quality Construction

High strength, T-1 steel is utilized in all critical wear points of the bucket. Abrasion-resistant steel is used in wear-straps to reinforce bottom of bucket. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

Various capacities and widths are available.

Additional Features

Available with your choice of Weld-on teeth, standard with this bucket, replaceable bolt-on cutting edge. Other tooth selections available. Please request a quote from your local dealer.


PART NUMBER  WIDTH CAPACITY NO. OF TEETH WEIGHT
EX35SK48
48"
1.60
5 3,590
EX35SK54 54" 1.80
6 3,940
EX35SK60 60" 2.00
6 4,200

35MT


MAKE / WEIGHT CLASS 35MT (68,500 - 82,000 LBS.)
CASE CX350
CAT 330, 335, 336F DB-LINKAGE
DOOSAN DX350LC-5, DX420LC-5
HITACHI ZX350, ZX380
HYUNDAI HX330, HX350, HX380
JOHN DEERE 350G, 380G, 350P
KOBELCO SK350
KOMATSU PC300, PC350, PC360, PC390
LIEBHERR R 934 CL, R 924 C, R936
LINK BELT 350X4
SANY SY365
TAKEUCHI
VOLVO EC330, EC340, EC350, EC360, EC380
