SLQT-05MN
WERK-BRAU Spring Loaded Manual Coupler for excavators 2,100 - 5,000 lbs. Excavators (Mini 05 & 76)
$2,353.00 - $2,753.00
1/24

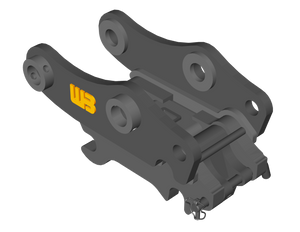

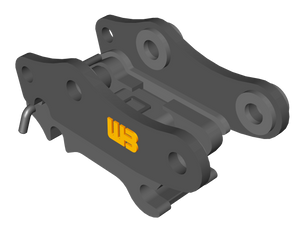

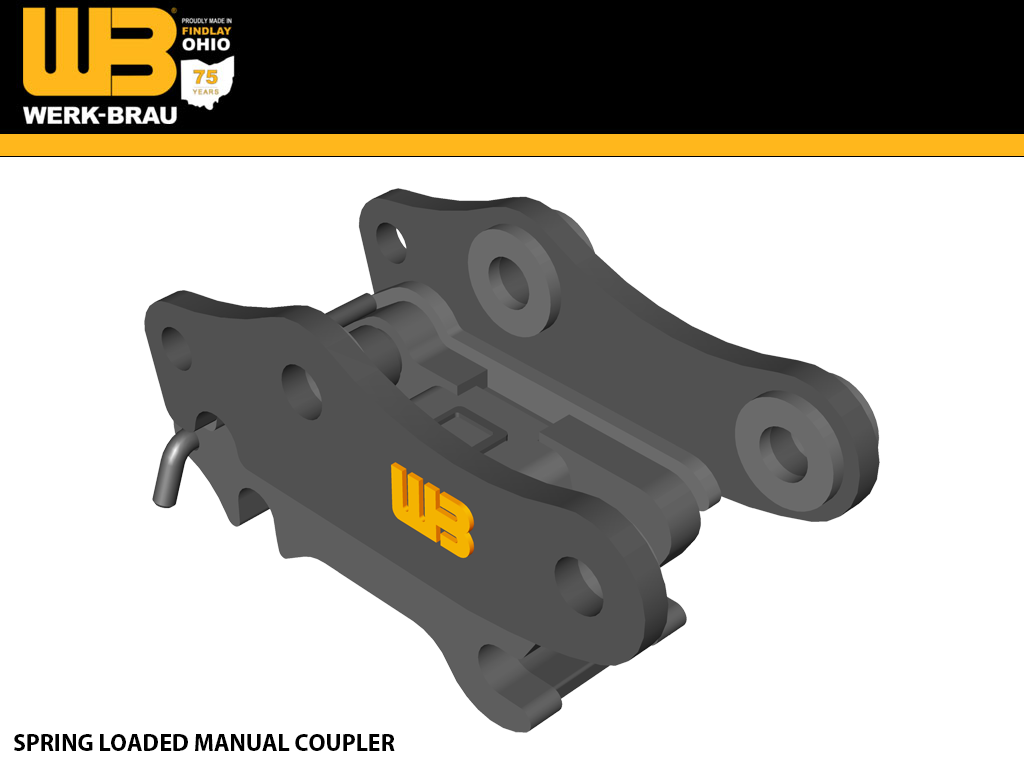

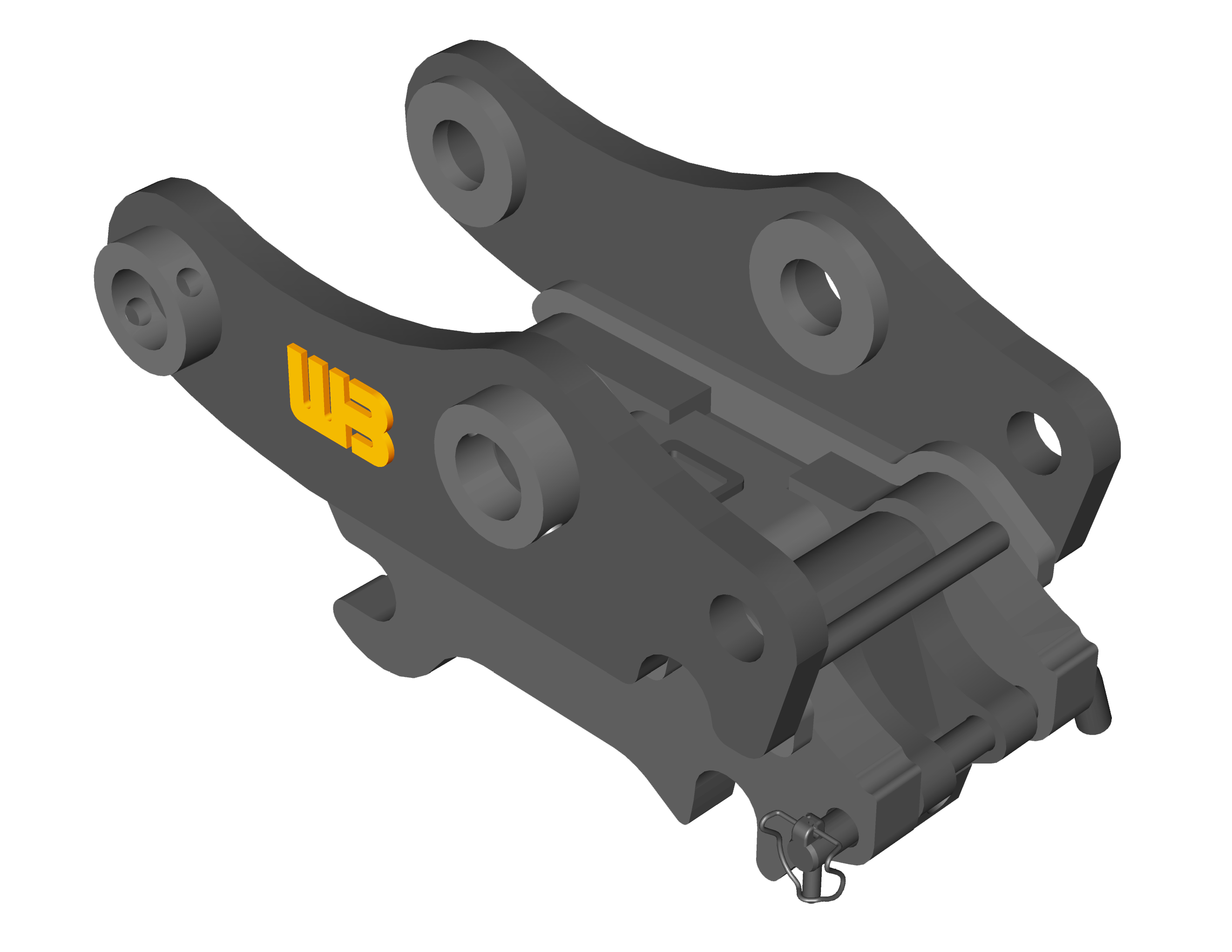

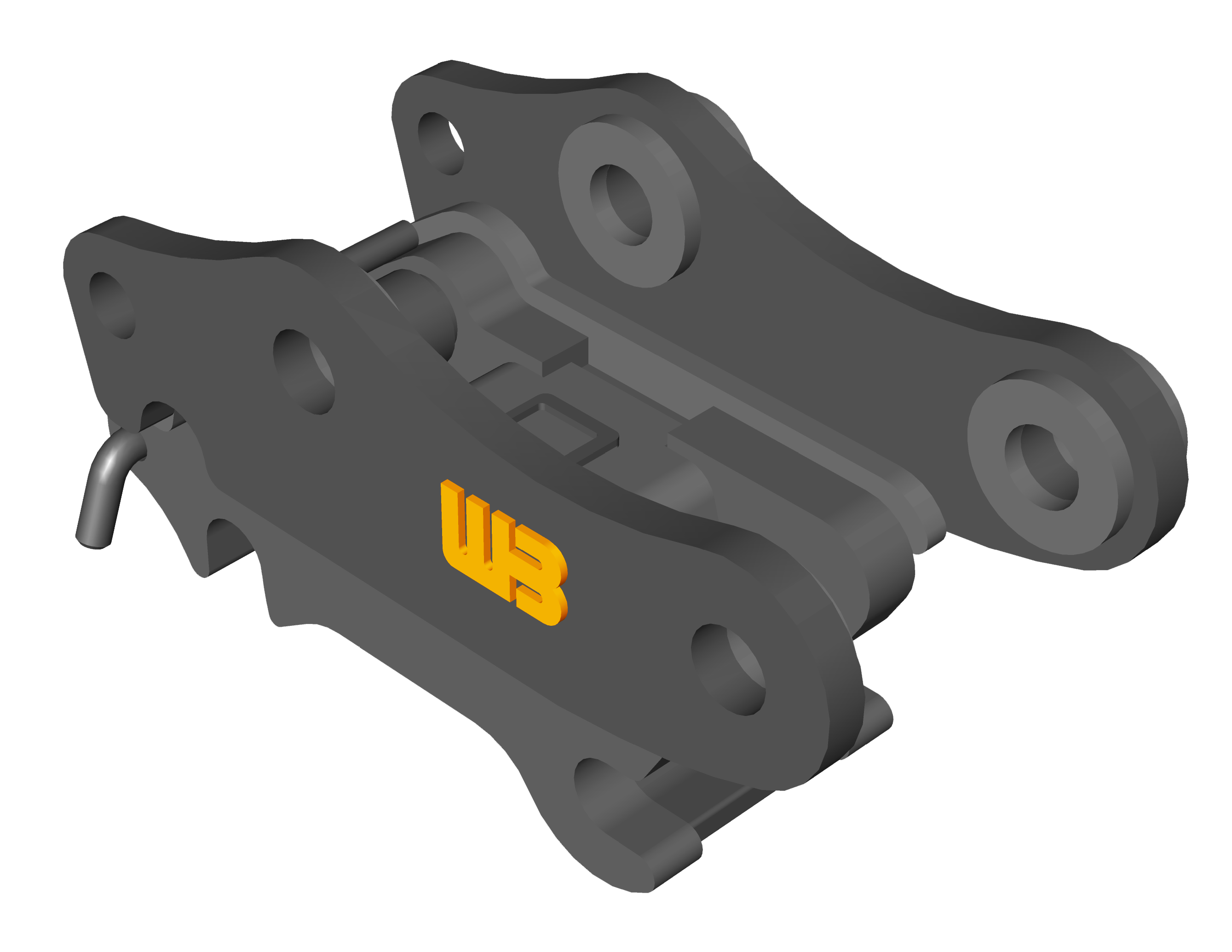

SPRING LOADED MANUAL COUPLER
Recommended Applications
Werk-Brau offers a complete range of manual couplers for all major brands and most machines. Werk-Brau's couplers are known for their tough build, versatility for pairing with any brand of attachments, safety features, tight lock, and ease of operator use. The Werk-Brau spring loaded manual coupler will work with any attachment from any manufacturer meeting OEM fit-up specifications. Each coupler features a heavy duty lift loop on the top hangers.
Quality Construction
Werk-Brau manufactures the coupler using the highest quality T-1 steel in all critical or high wear components to ensure that this coupler has a long operating life. Werk-Brau's couplers are constructed using a solid one piece, front cross member which provides more wear service than most other competitive couplers available. A heavy duty lift loop is featured on the top hangers. Spring loaded manual couplers feature adjustable springs.
Safety Pin Notice
Never operate a Werk-Brau coupler without it's approved safety pin in place. For additional information, please review the owners installation manual for this coupler. Additional, or replacement safety pins maybe ordered.
Definition
- Straight Coupler option. The top and bottom of the coupler mount will match to the OEM excavator make and model of the machine it is being mounted on.
- Combo Coupler option. The top mount will match the the OEM excavator make and model of the machine it is being mounted on. The Bottom mount will match the determined OEM make and model of the bucket you want to pick up. The buckets you want to pick up should be in the same machine class size. Example: You own a Case CX57C and the top mount will be set up for a Case CX57C. The buckets you own are for a CAT 305.5E2CR and the bottom mount will match those buckets.
| PART # | TYPE | STYLE | WEIGHT |
| SLQT-05MN |
Straight |
spring loaded |
60 |
| SLQT-05MN-CC | Combo | spring loaded | 60 |
Mini 05
| MAKE / WEIGHT CLASS | MINI 05 (2,100 - 4,900 LBS.) |
| BOBCAT | 323 |
| CASE | CX17B |
| CAT | 301.5, 301.7CR, 301.8, 302CR |
| DOOSAN | S015 |
| DITCH WITCH | XT850 |
| GEHL | GE153 |
| HITACHI | EX17U |
| HYUNDAI | R16 |
| IHI | 15NX-2 |
| JCB | 8018 |
| JOHN DEERE | 17G |
| KOBELCO | 17SR |
| KOMATSU | PC18MR-3 |
| KUBOTA | KX018, U17 |
| LINK BELT | ME1503 |
| MUSTANG | E15, E18B |
| NEW HOLLAND | SY16 |
| SANY | TB016, TB216 |
| TAKEUCHI | EC15B |
| VOLVO | EC20B |
| YANMAR | Vio17, SV08-1, Vio20-3 |
| WACKER NEUSON | EZ17, 1404, ET20 |
Mini 76
| MAKE / WEIGHT CLASS | MINI 76 (2,100 - 5,000 LBS.) |
| BOBCAT | |
| CASE | CX27B |
| CAT | 302.5, 302.7 |
| DOOSAN | DX27 |
| DITCH WITCH | |
| GEHL | GE223 |
| HITACHI | ZX27U-2 |
| HYUNDAI | R22 |
| IHI | 20JX(NX), 25(NX), 28(NX), 30JX(NX) |
| JCB | 8025 |
| JOHN DEERE | 26G, 27G |
| KOBELCO | 27SR |
| KOMATSU | PC20MR-2 |
| KUBOTA | U25, U27 |
| LINK BELT | |
| MUSTANG | ME2203 |
| NEW HOLLAND | E27 |
| SANY | |
| TAKEUCHI | |
| VOLVO | EC25, EC30, ECR28, ECR38 |
| YANMAR | |
| WACKER NEUSON |
