TSC080

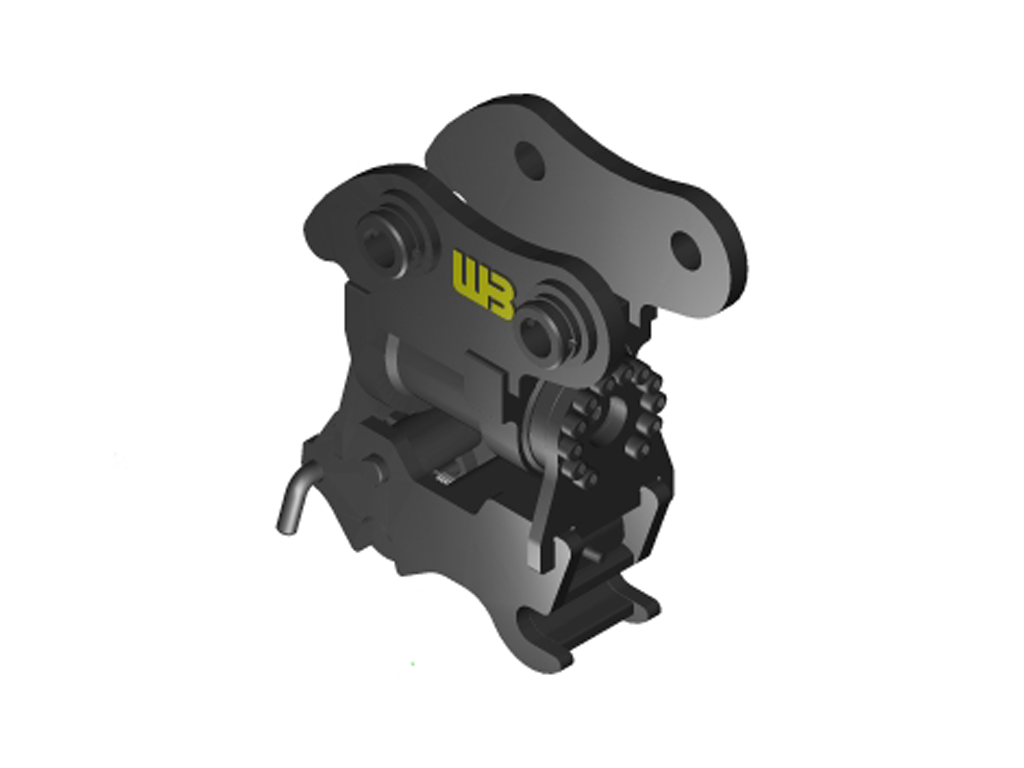

WERK-BRAU Tilting Coupler for 11,000 - 16,000 lbs. Mini Excavators (Mini 3 & 4)
$10,453.00 - $17,933.00
1/24
D-Lock Hydraulic tilt coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Triple sealed actuator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Compact design – Improving machine performance
- No greasing or lubrication required
- Only requires four hydraulic lines
- Up to 180 degrees of tilt
- Fully guarded hoses

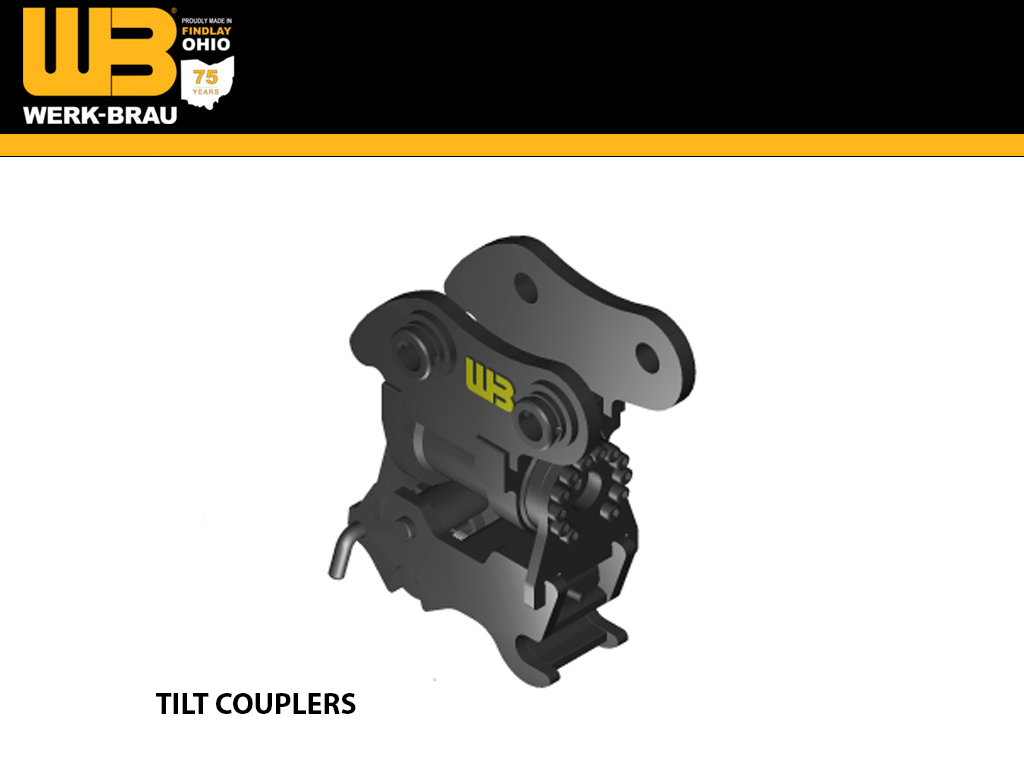

Spring Loaded Tilt Coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Triple sealed actuator
- Safety system does not rely on gravity
- Spring Loaded manual locking mechanism
- Simple, yet safe unlock procedure eliminates accidental releases
- No greasing or lubrication required
- Only requires two hydraulic lines
- Up to 180 degrees of tilt
| PART # | TYPE | STYLE | WEIGHT |
| TSC080 | Manual | Spring Loaded | 315 |
| TPP080 | Manual | Pull Pin | 300 |
| TD080-45 | Hydraulic | D-Lock | 530 |
| TD080-50 | Hydraulic | D-Lock | 530 |
| TD080-55 | Hydraulic | D-Lock | 530 |
| TD080-60 | Hydraulic | D-Lock | 530 |
| TK080-####-5294 | Manual | Kubota KX080 tilt coupler PO top | 300 |
| TS080-5294 | Manual | Kubota KX080 tilt coupler QC top | 300 |
Mini 3
| MAKE / WEIGHT CLASS | MINI 3 (11,000 - 14,000 LBS.) |
| BOBCAT | E80, E85 |
| CASE | |
| CAT | 306CR |
| DOOSAN | DX80 |
| DITCH WITCH | |
| GEHL | GE753Z, GE803 |
| HITACHI | |
| HYUNDAI | R75 |
| IHI | 55N-2, 55NX, 65NX, 80NX |
| JCB | 8060 |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | PC78, PC95, PC88MR-8 |
| KUBOTA | |
| LINK BELT | |
| MUSTANG | 8003, 7503ZT |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | HR32 |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON | ET90, EW100, 8003 |
Mini 4
| MAKE / WEIGHT CLASS | MINI 4 (14,000 - 16,000 LBS.) |
| BOBCAT | |
| CASE | CX75, CX80 |
| CAT | 307.5, 308CR, 308CRVAB, 309CR, 309CRVAB |
| DOOSAN | DX85SR-3 |
| DITCH WITCH | |
| GEHL | |
| HITACHI | ZX75, ZX80 |
| HYUNDAI | R80 |
| IHI | |
| JCB | 8080 |
| JOHN DEERE | 75G, 85G |
| KOBELCO | 70SR, 75SR, 80CS, SK85 |
| KOMATSU | |
| KUBOTA | KX080 |
| LINK BELT | 75, 80 |
| MUSTANG | |
| NEW HOLLAND | E70, E80 |
| SANY | SY75, SY80 |
| TAKEUCHI | TB070, TB175, TB180FR, TB285, TB290 |
| VOLVO | EC70, ECR88 |
| YANMAR | SV100, Vio-70, Vio75-a, Vio-80, B7-5A |
| WACKER NEUSON |
