TSC055

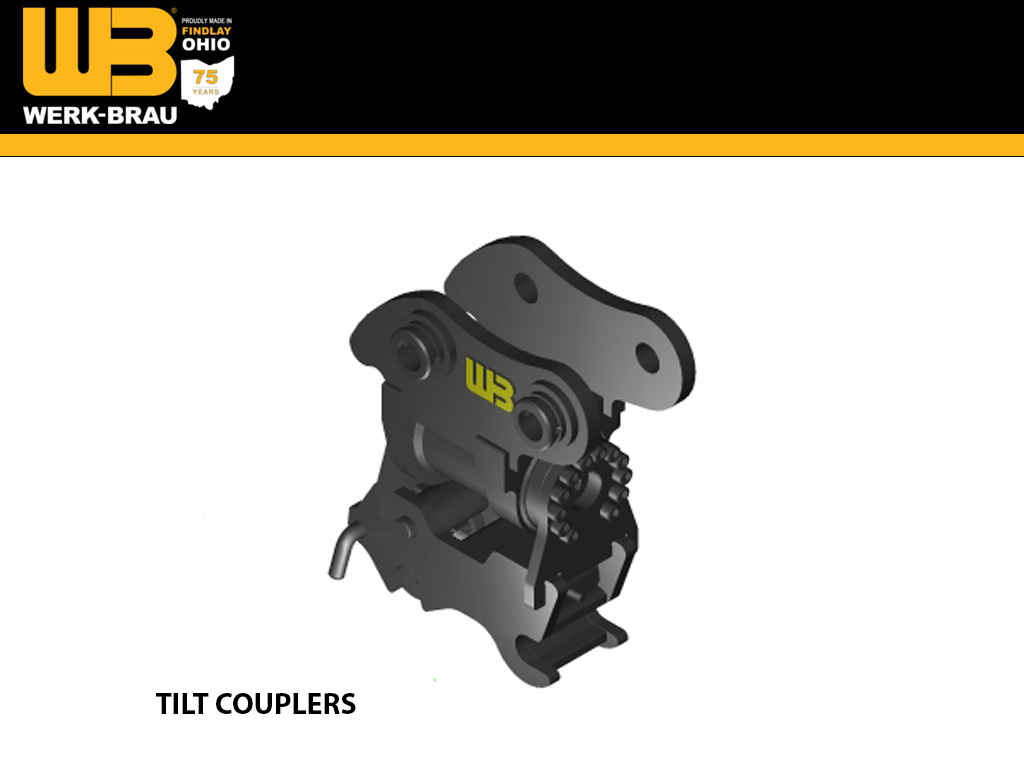

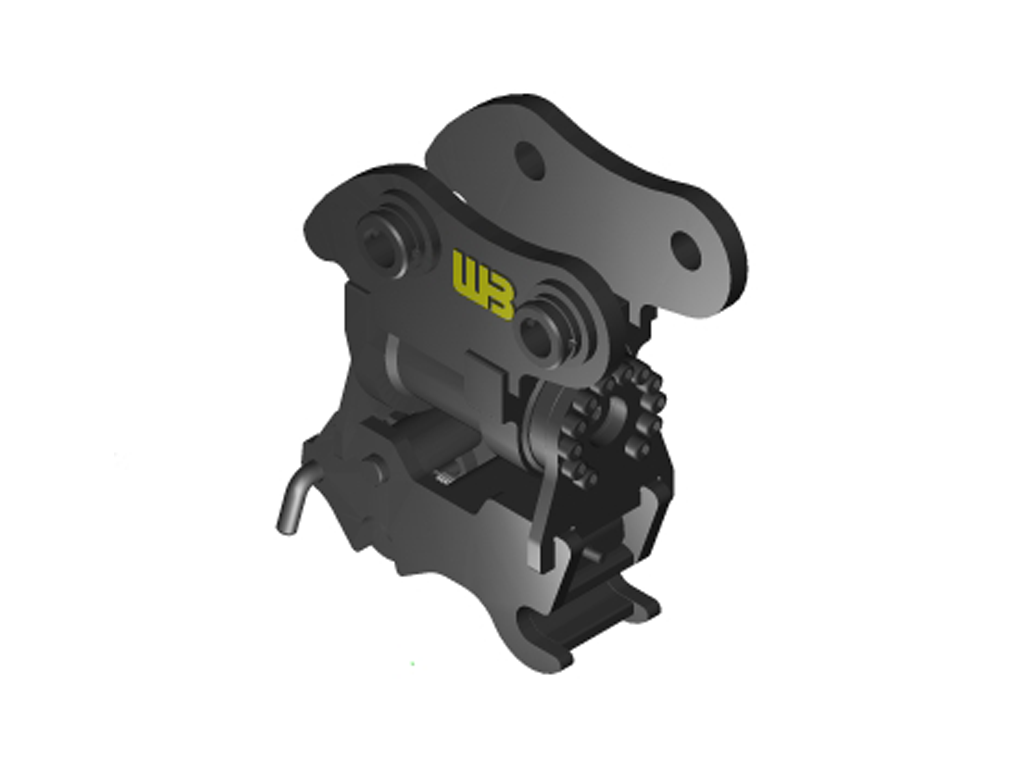

WERK-BRAU Tilting Coupler for 7,500 - 11,000 lbs. Mini Excavators (Mini 15 & 2)
$9,113.00 - $16,467.00
1/24
D-Lock Hydraulic tilt coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Triple sealed actuator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Compact design – Improving machine performance
- No greasing or lubrication required
- Only requires four hydraulic lines
- Up to 180 degrees of tilt
- Fully guarded hoses
Spring Loaded Tilt Coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Triple sealed actuator
- Safety system does not rely on gravity
- Spring Loaded manual locking mechanism
- Simple, yet safe unlock procedure eliminates accidental releases
- No greasing or lubrication required
- Only requires two hydraulic lines
- Up to 180 degrees of tilt
| PART # | TYPE | STYLE | WEIGHT |
| TSC055 | Manual | Spring Loaded | 220 |
| TPP055 | Manual | Pull Pin | 200 |
| TD05-45 | Hydraulic | D-Lock | 375 |
| TS055-####-5306 | Manual | Kubota KX057/U55 tilt coupler w/ PO top | 200 |
| TS050-5306-5306 | Manual | Kubota KX057/U55 tilt coupler w/ QC top | 200 |
| TW055-####-5084 | Manual | JD 50 Wedge tilt coupler w/ PO top | 200 |
| TW055-5084 | Manual | JD 50 Wedge tilt coupler w/ QC top | 200 |
| TW055-####-5302 | Manual | JD 60 Wedge tilt coupler w/ PO top | 200 |
| TW055-5302 | Manual | JD 60 Wedge tilt coupler w/ QC top | 200 |
Mini 15
| MAKE / WEIGHT CLASS | MINI 15 (7,500 - 11,000 LBS.) |
| BOBCAT | 335, 337, 341, 435, E45, E50, E55, E60 |
| CASE | CX50B, CX55B, CX57C, CX60C |
| CAT | 303.5E2CR, 304E2CR, 304.5E2XTC, 305E2CR, 305.5E2CR |
| DOOSAN | DX60, DX63-3 |
| DITCH WITCH | |
| GEHL | GE503Z, GE603 |
| HITACHI | ZX50, AX60 |
| HYUNDAI | R55, R60 |
| IHI | 40JX, 45JX |
| JCB | 8040, 8045, 8052 |
| JOHN DEERE | 50G |
| KOBELCO | 50SR, 55SRX |
| KOMATSU | PC45MR-3, PC55MR-3, PC58UU-3 |
| KUBOTA | U55, KX057 |
| LINK BELT | |
| MUSTANG | 5003ZT, 6003 |
| NEW HOLLAND | E50, E55BX |
| SANY | SY50, SY60 |
| TAKEUCHI | TB145, TB153FR, TB250, TB260 |
| VOLVO | EC55B, ECR58 |
| YANMAR | Vio55-5 |
| WACKER NEUSON | ET65, EW65, EZ53, 6003 |
Mini 2
| MAKE / WEIGHT CLASS | MINI 2 (7,500 - 11,000 LBS.) |
| BOBCAT | |
| CASE | |
| CAT | |
| DOOSAN | |
| DITCH WITCH | |
| GEHL | |
| HITACHI | |
| HYUNDAI | |
| IHI | |
| JCB | |
| JOHN DEERE | 60G |
| KOBELCO | |
| KOMATSU | |
| KUBOTA | |
| LINK BELT | |
| MUSTANG | |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON |
