WTB48-1.00-180

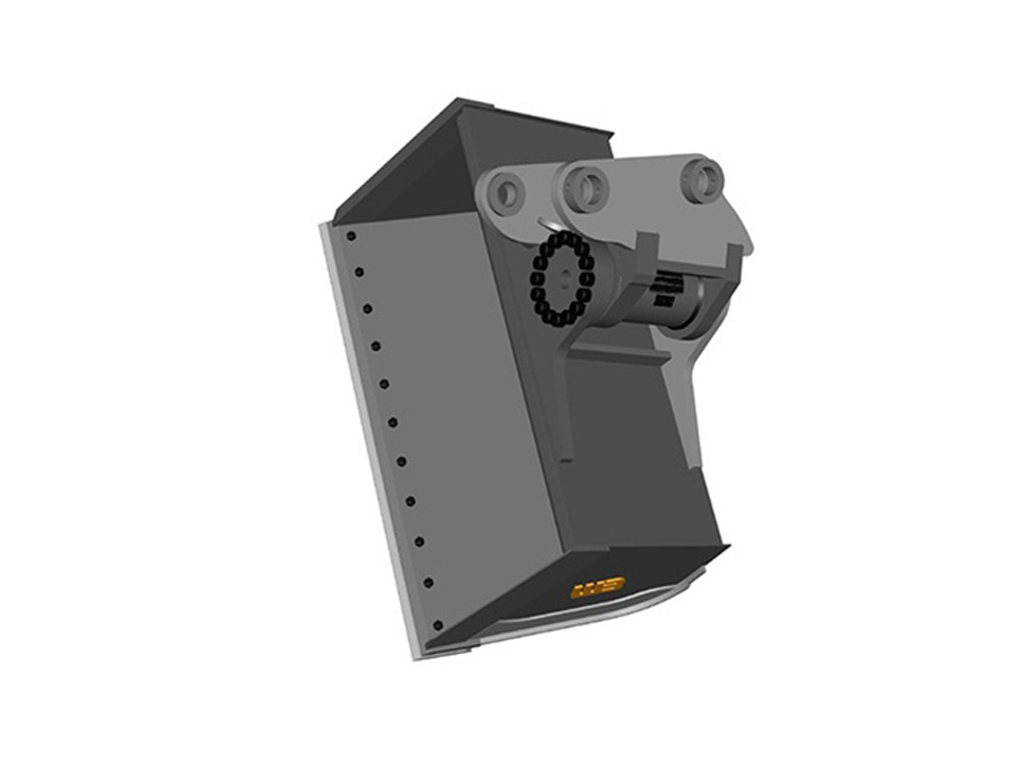

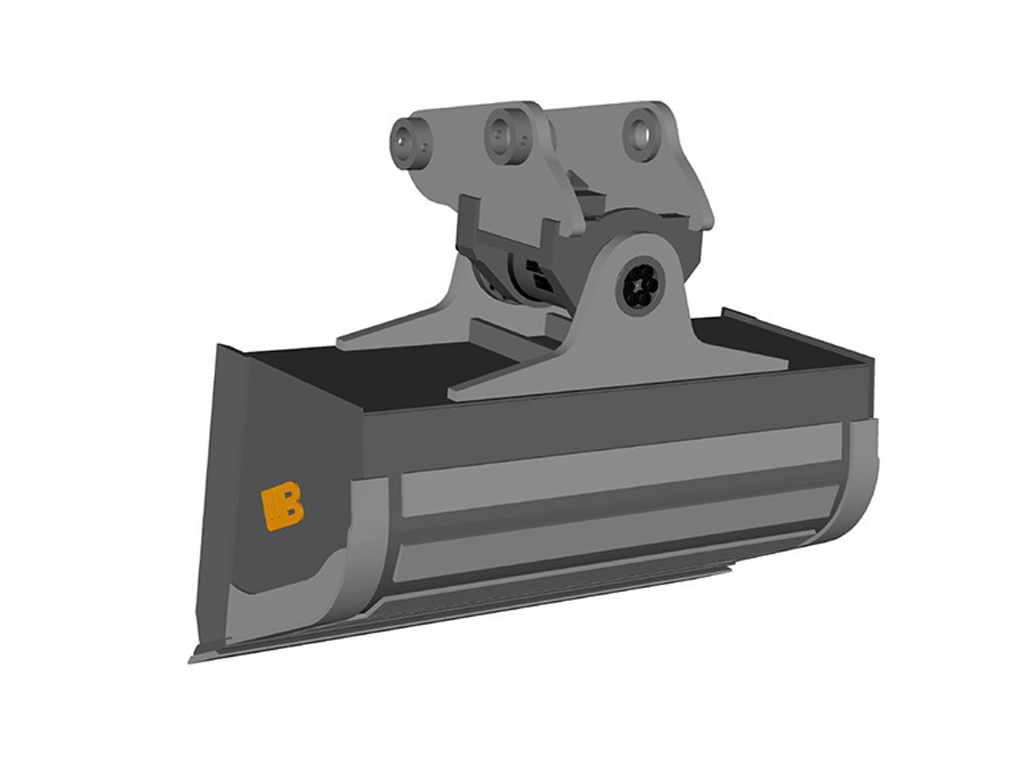

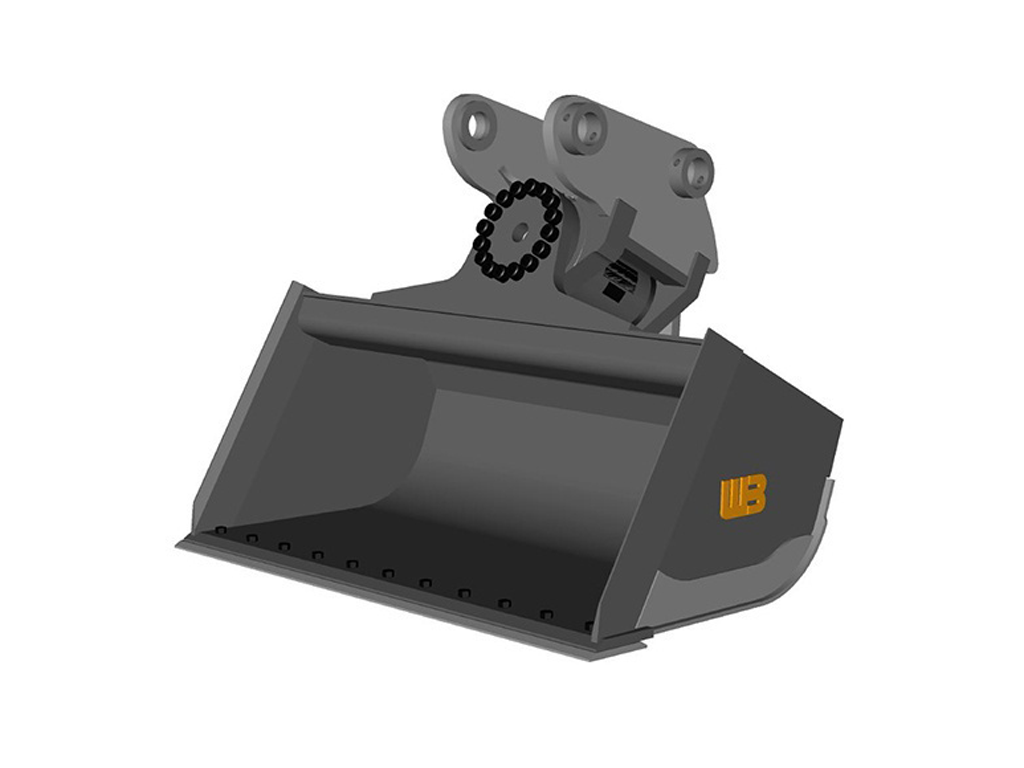

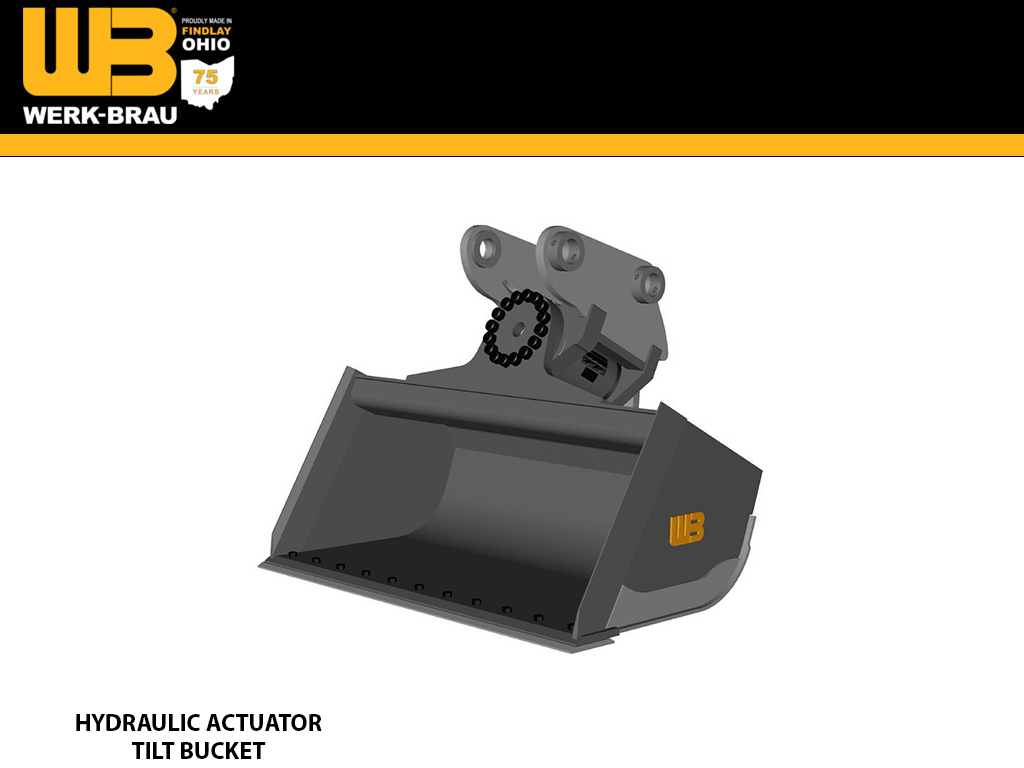

WERK-BRAU Hydraulic Actuator Tilt Bucket for 24,000 - 32,000 lbs. Excavators. (12MT)

Size

10/24

WERK-BRAU TILT BUCKETS


Recommended Applications

With the Werk-Brau Actuator Tilt Ditching bucket, you can tilt any bucket up to 90 degrees each way (180 degrees total) vs. 45 degrees each way in a cylinder design. This bucket design eliminates minimum width constraints like a typical cylinder version.

Key Features

Instead of tilt cylinders, Werk-Brau offers their tilting grade bucket with a rotary actuator to achieve more tilting range of motion, tilting force, and also less downtime and maintenance. Productivity can increase by up to 50% by simply tilting your attachments. The tilting function is powered by a fully enclosed rotary actuator with improved tilt holding force. With no exposed cylinders, this bucket reduces downtime.

Features

  • Up to 90 degree tilt each direction
  • No teeth for grading
  • Tapered side walls
  • Actuator action
  • Manifolds for quick hose replacement
  • pricing does not include hydraulics
  • bolt on edge included



*** BUCKET PINS NOT INCLUDED

PART # WIDTH CAPACITY STRUCK CAPACITY RATED WEIGHT
WTB48-1.00-180
48" 0.75
1.00 1875
WTB60-.75-180 60"
0.60
0.75 1950

12MT

MAKE / WEIGHT CLASS 12MT (24,000 - 33,000 LBS.)
CASE CX130, CX145D, CX140E
CAT 311, 313, 314F, 315F (A-Linkage)
DOOSAN DX140LC-5, DX140LCR-5, DX140W-5
HITACHI ZX130
HYUNDAI HX140, HX145, HX220 LR
JOHN DEERE 130G, 135G, 130P
KOBELCO SK140, ED160
KOMATSU PC138
LIEBHERR
LINK BELT 130X4, 145X4, 210X4 LR
SANY SY135, SY235 LR, SY265 LR
TAKEUCHI TB1140, TB2150
VOLVO EW140, EC140, ECR145
