15MSD12
12/24

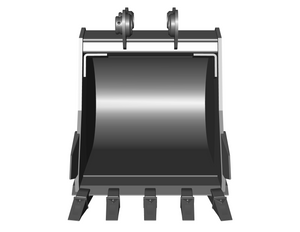

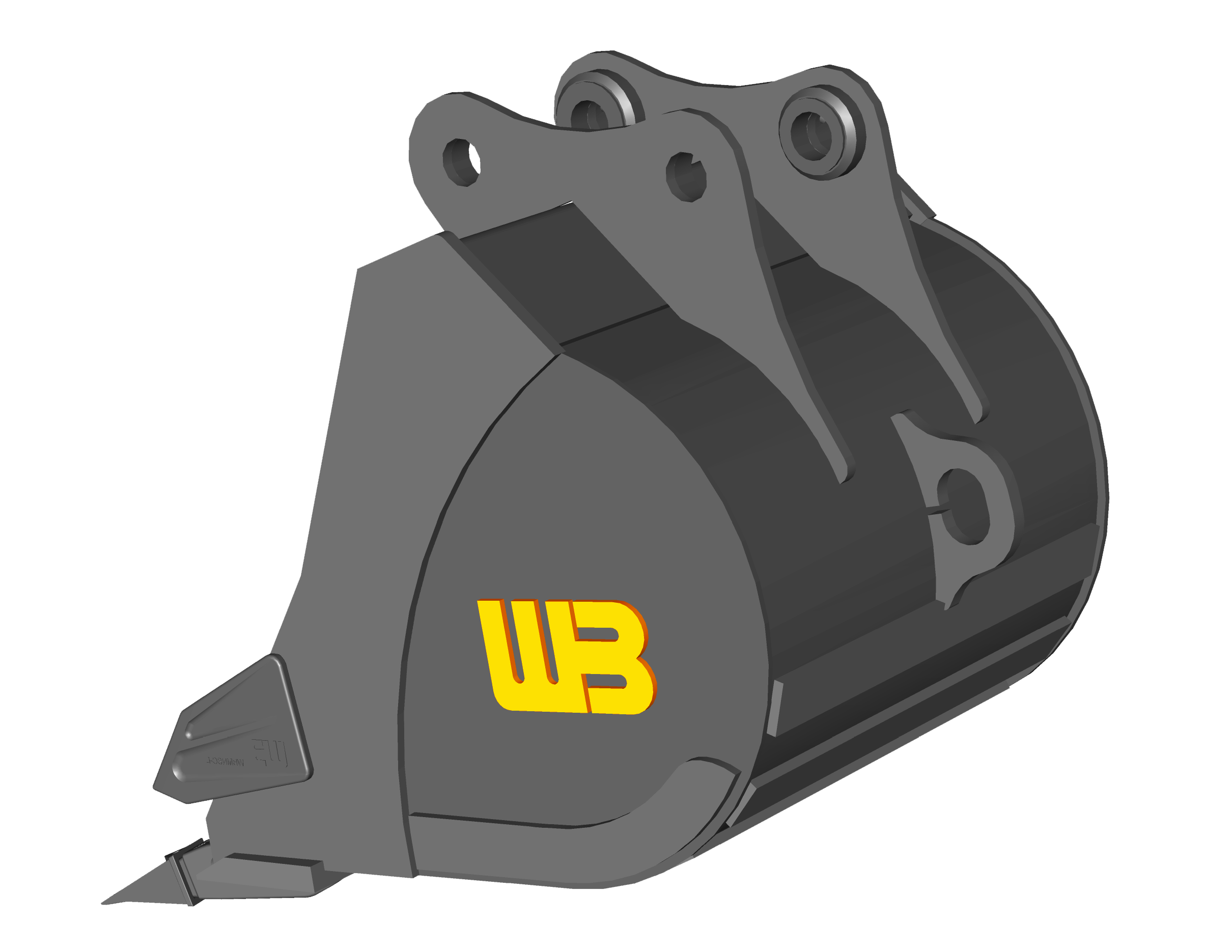

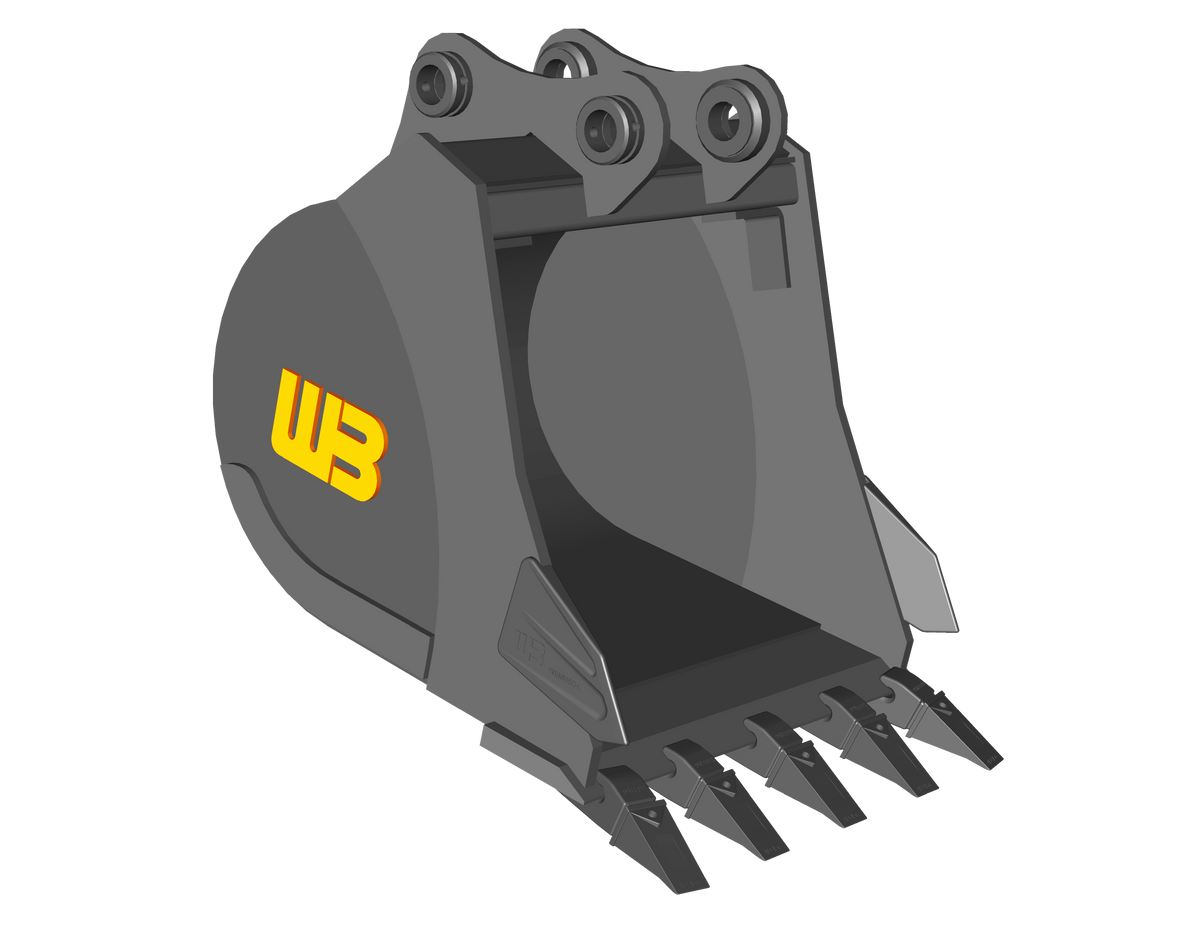

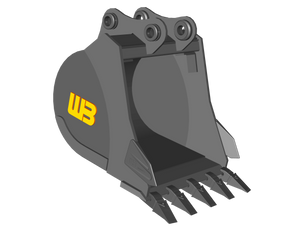

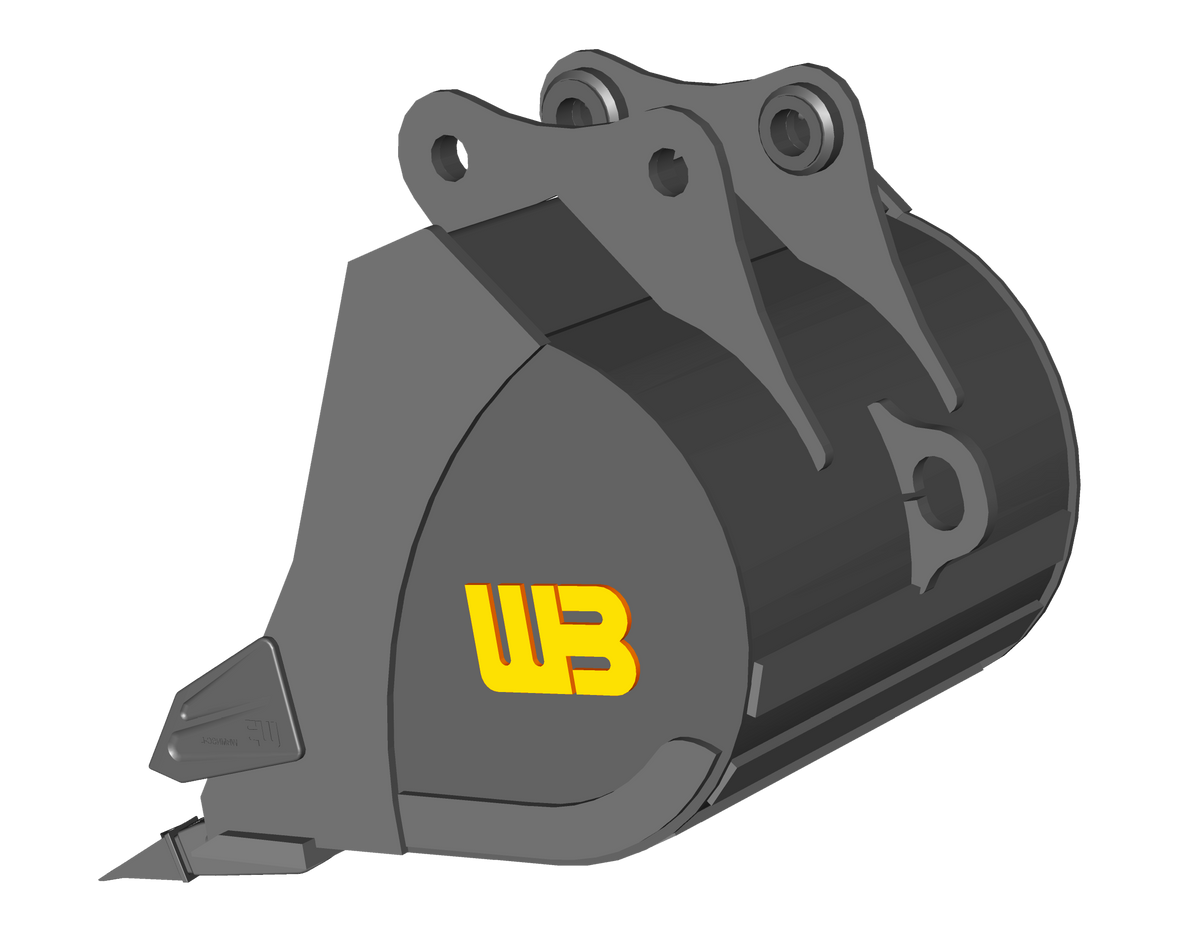

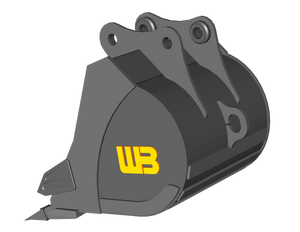

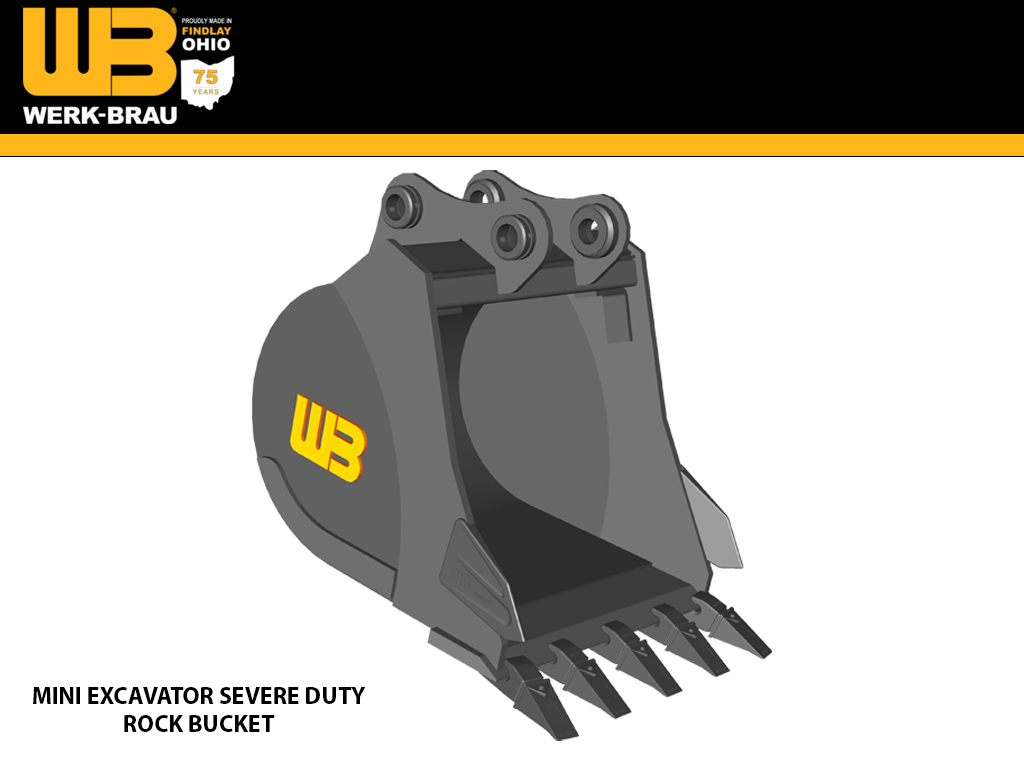

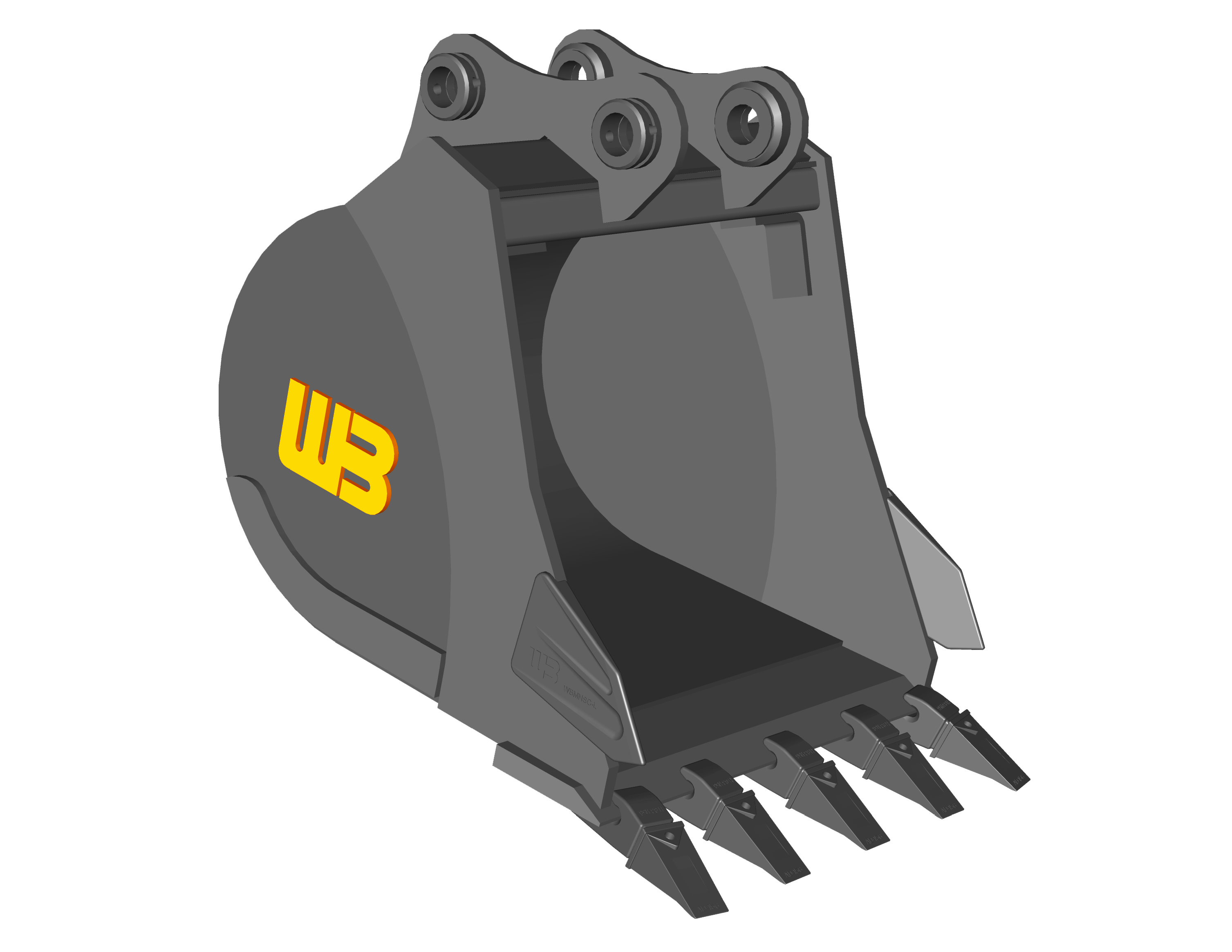

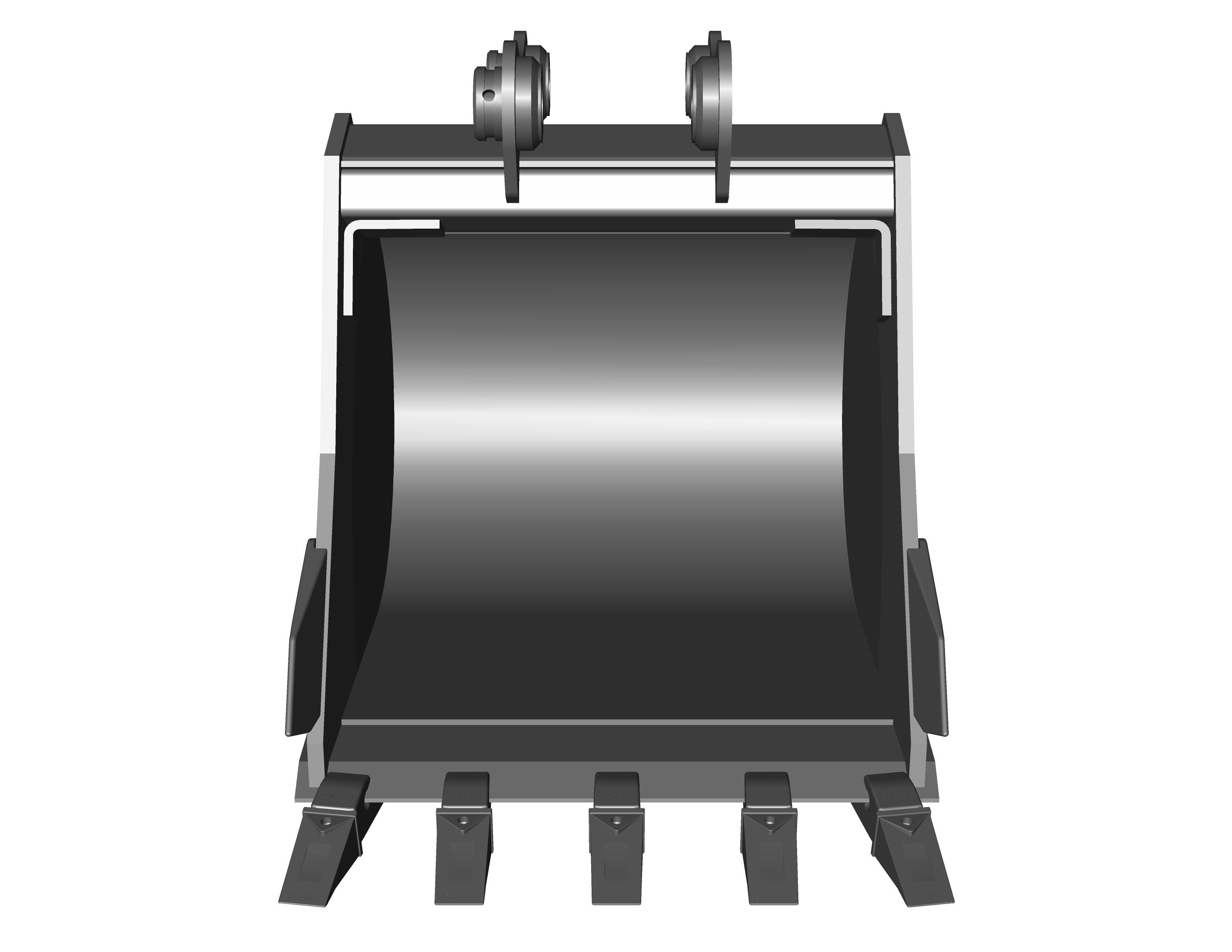

Werk-Brau's severe duty buckets are specifically designed with an aggressive dig angle to effectively excavate in the toughest conditions. Ideal applications for this bucket include but are not limited to demolition work, shot rock, high abrasive applications, and moderate prying. When paired with a thumb, this bucket can also be used for material handling.
Increased material thickness in most components add life and durability in the most extreme digging conditions. T-1 steel is utilized in all critical or high wear components. This bucket features tapered side plates, horizontal wear straps, and an extra thick cutting edge is backed by a wear plate that covers the entire bucket bottom. The cutter bit is made from heavy duty cast material. Side wear plates protect the bucket sides in the high wear areas and extend the buckets operation life. The tip radius on the severe duty excavator bucket is to or within O.E.M. specifications. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Oversized OEM approved cast teeth and shanks are standard.
Standard widths range from 12" to 36" in 6" increments -- special widths available on request. Standard capacity available in all most popular widths.
Bolt-on side cutters are highly recommended for added endurance. Adjustable bushings are available upon request. Box rippers are available and can be installed upon request. Special designs and capacities are available, please request a quote from your local dealer.
PART # | WIDTH | CAPACITY | NO. TEETH | WEIGHT |
15MSD12 | 12" | 2.40 |
3 | 300 |
15MSD16 | 16" | 3.20 |
3 | 320 |
15MSD18 | 18" | 3.60 |
4 | 340 |
15MSD20 | 20" | 4.00 |
4 |
350 |
15MSD24 | 24" | 5.00 |
5 | 370 |
MAKE / WEIGHT CLASS | MINI 15 (7,500 - 11,000 LBS.) |
BOBCAT | 335, 337, 341, 435, E45, E50, E55, E60 |
CASE | CX50B, CX55B, CX57C, CX60C |
CAT | 303.5E2CR, 304E2CR, 304.5E2XTC, 305E2CR, 305.5E2CR |
DOOSAN | DX60, DX63-3 |
DITCH WITCH | |
GEHL | GE503Z, GE603 |
HITACHI | ZX50, AX60 |
HYUNDAI | R55, R60 |
IHI | 40JX, 45JX |
JCB | 8040, 8045, 8052 |
JOHN DEERE | 50G |
KOBELCO | 50SR, 55SRX |
KOMATSU | PC45MR-3, PC55MR-3, PC58UU-3 |
KUBOTA | U55, KX057 |
LINK BELT | |
MUSTANG | 5003ZT, 6003 |
NEW HOLLAND | E50, E55BX |
SANY | SY50, SY60 |
TAKEUCHI | TB145, TB153FR, TB250, TB260 |
VOLVO | EC55B, ECR58 |
YANMAR | Vio55-5 |
WACKER NEUSON | ET65, EW65, EZ53, 6003 |
