05MSD8

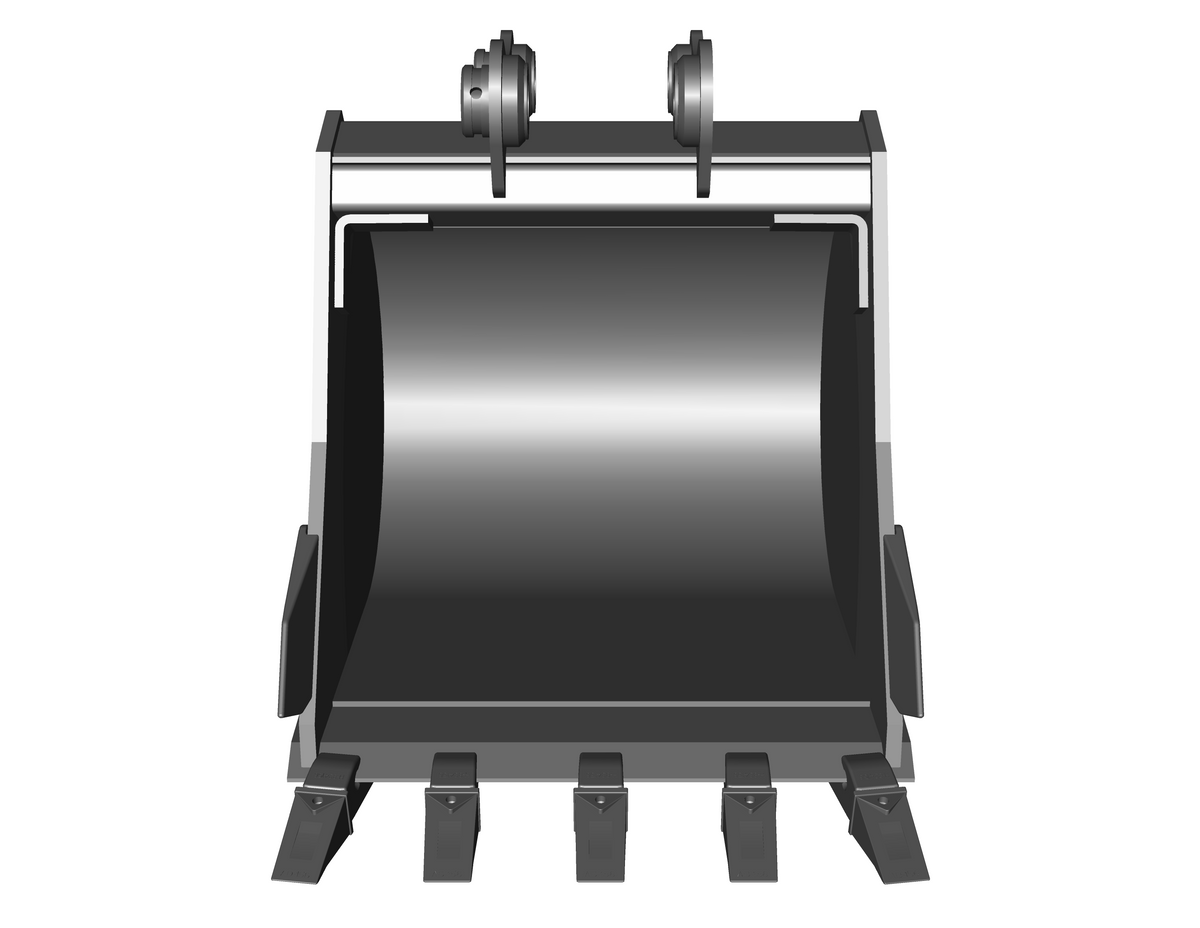

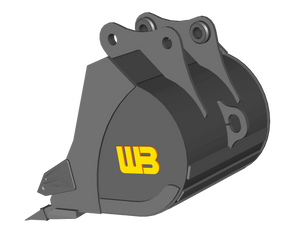

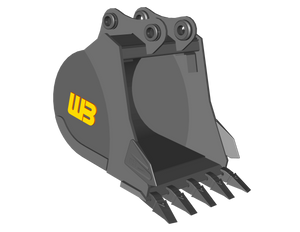

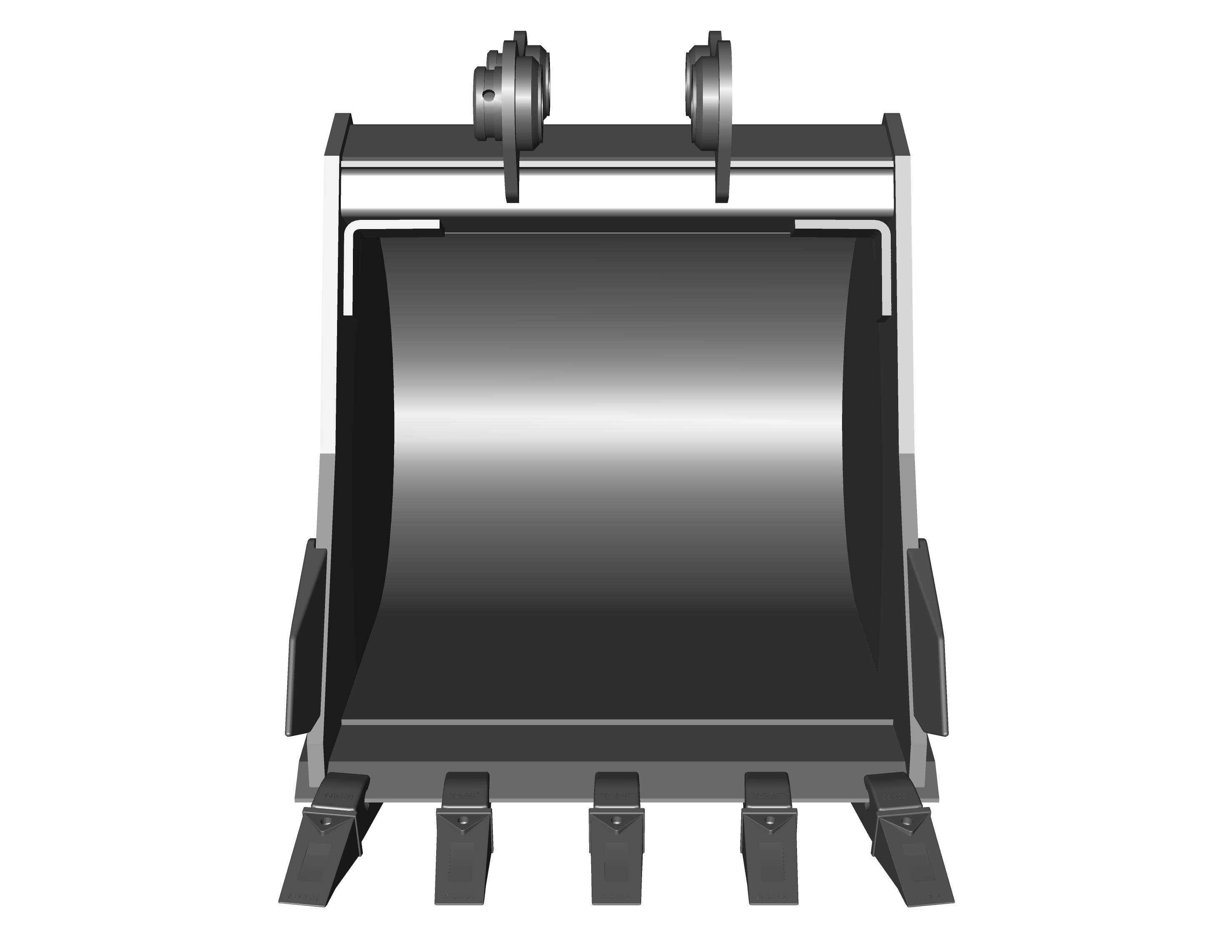

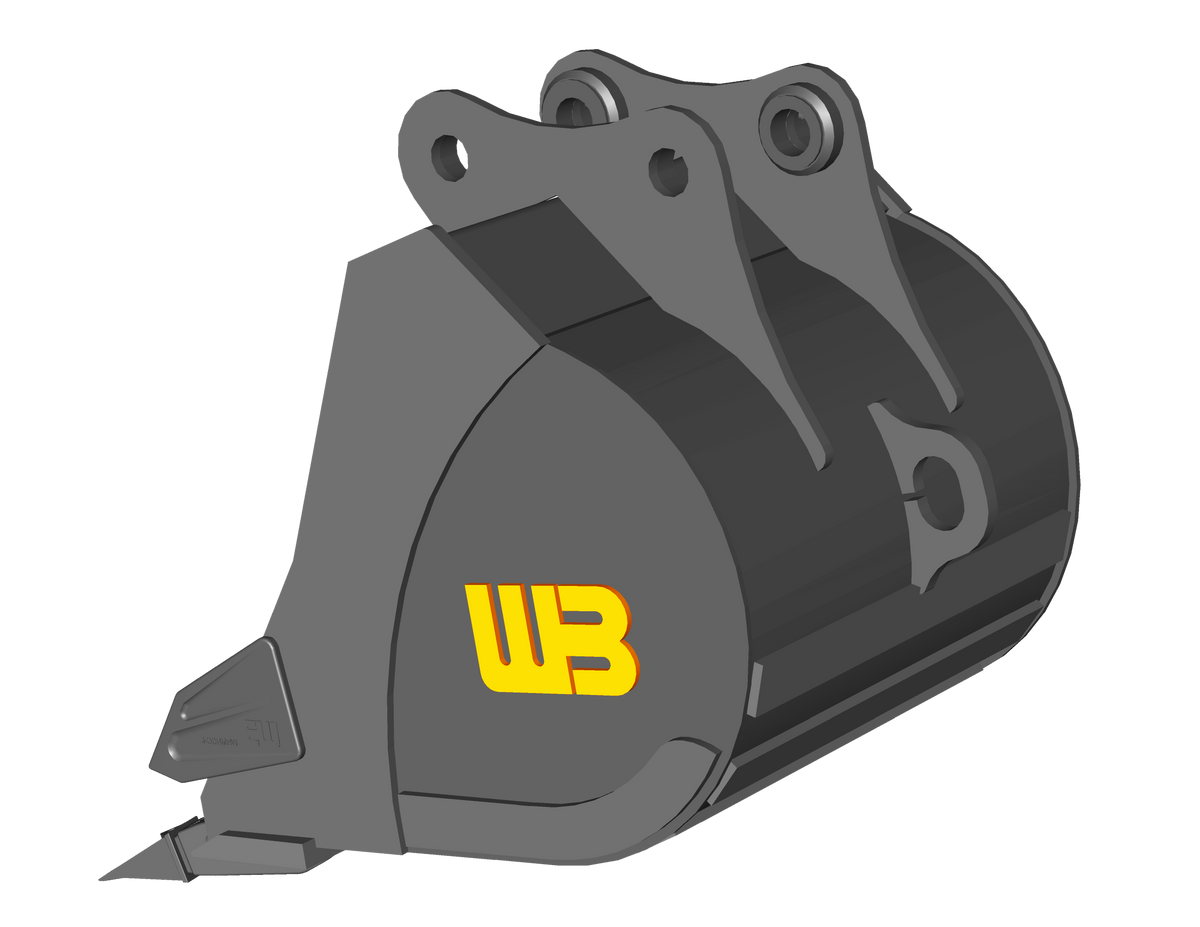

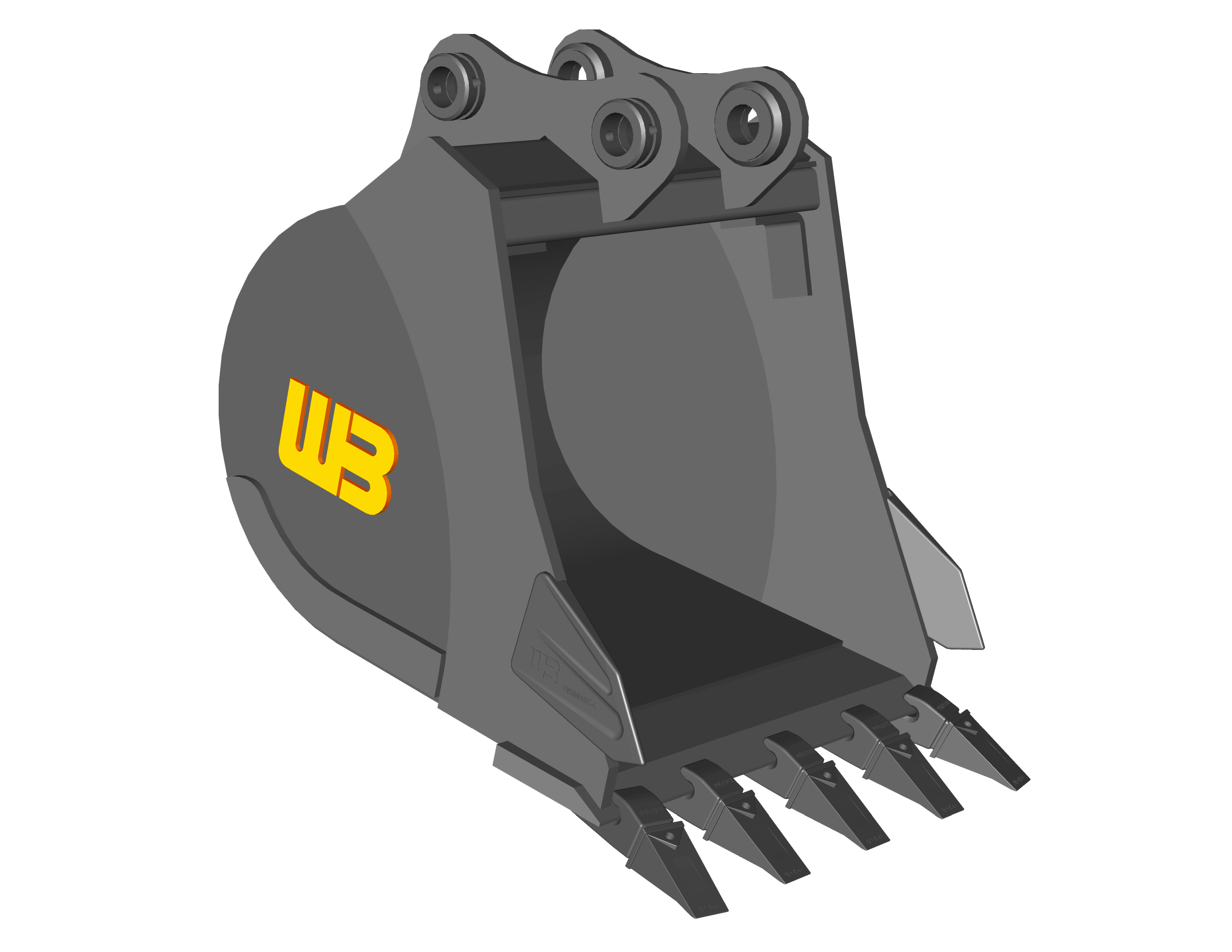

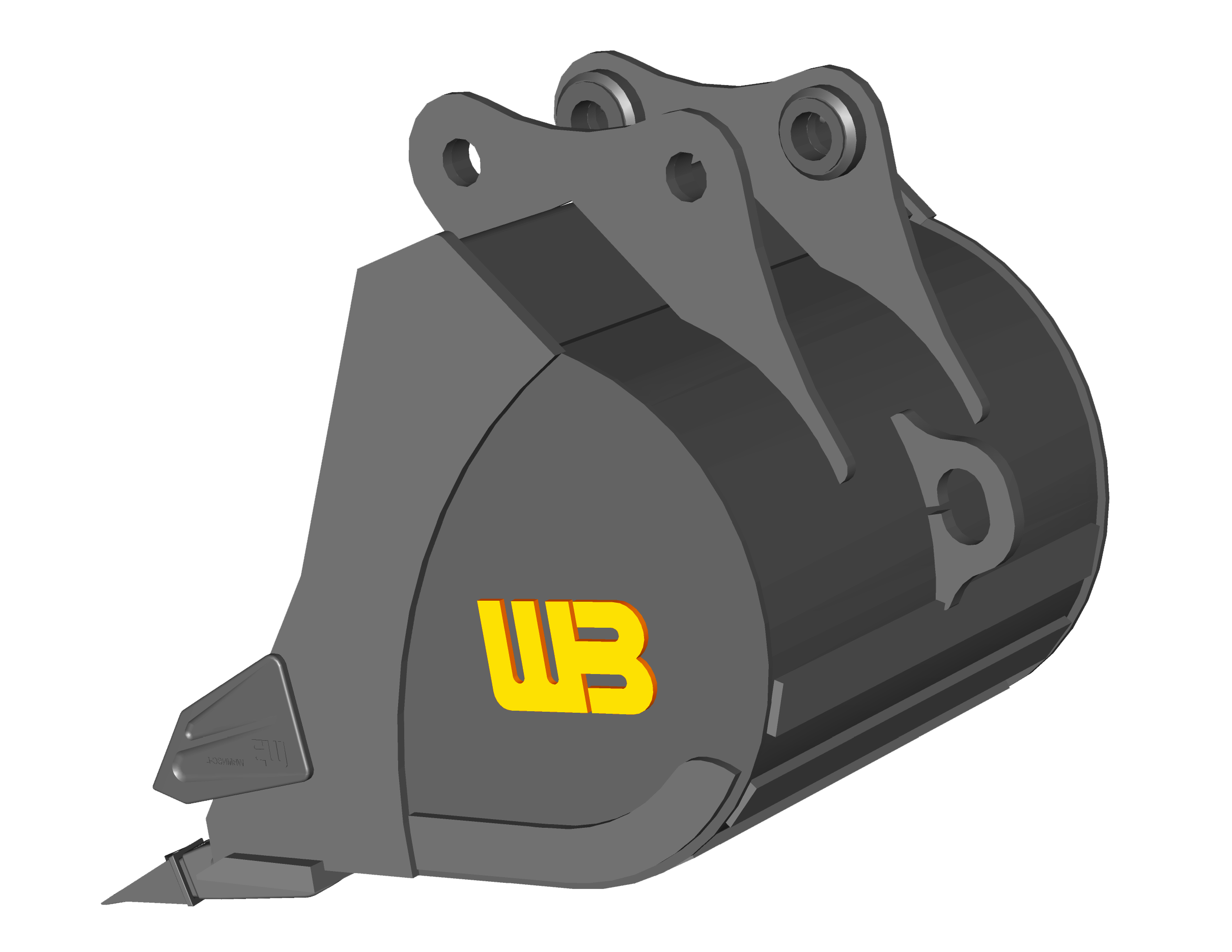

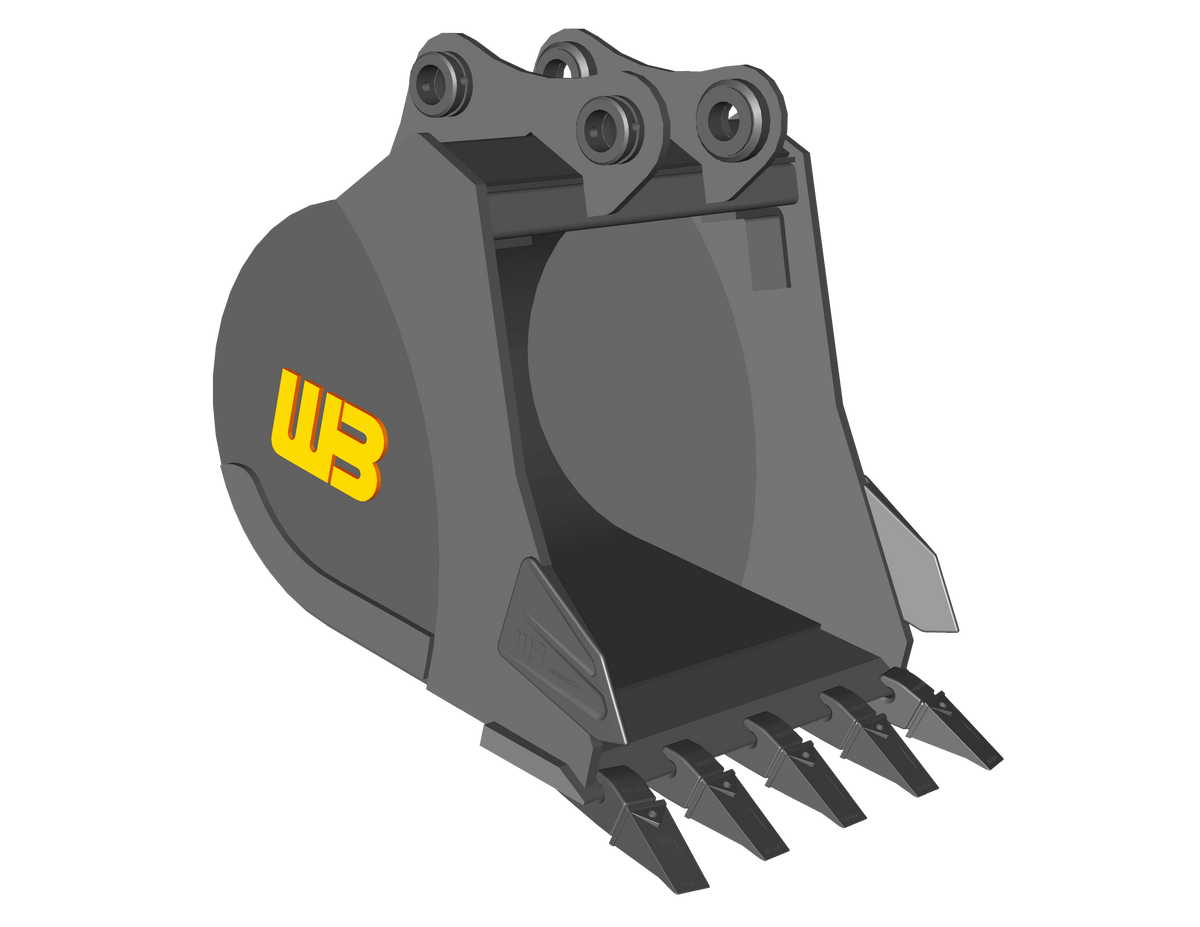

WERK-BRAU Severe duty rock Bucket for 2,150 - 4,900 lbs. Excavators. (Mini 05)

Size
Weld-on Side cutters

12/24

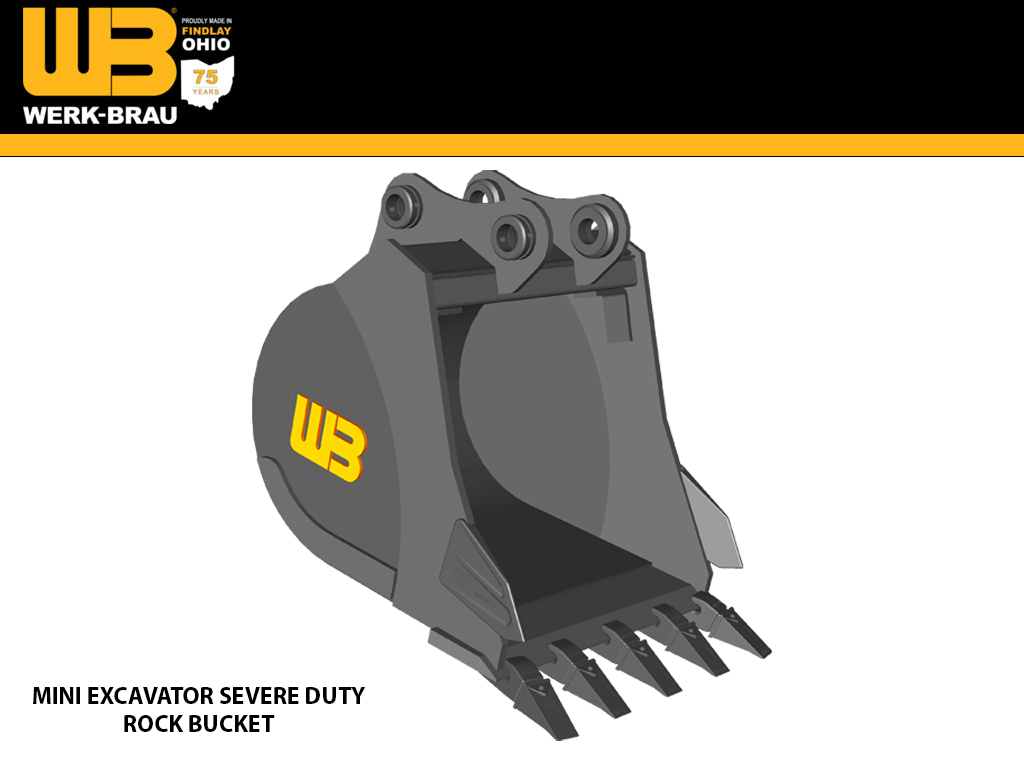

WERK BRAU SEVERE DUTY ROCK BUCKETS

MINI EXCAVATOR



Recommended Applications

Werk-Brau's severe duty buckets are specifically designed with an aggressive dig angle to effectively excavate in the toughest conditions. Ideal applications for this bucket include but are not limited to demolition work, shot rock, high abrasive applications, and moderate prying. When paired with a thumb, this bucket can also be used for material handling.

Quality Construction

Increased material thickness in most components add life and durability in the most extreme digging conditions. T-1 steel is utilized in all critical or high wear components. This bucket features tapered side plates, horizontal wear straps, and an extra thick cutting edge is backed by a wear plate that covers the entire bucket bottom. The cutter bit is made from heavy duty cast material. Side wear plates protect the bucket sides in the high wear areas and extend the buckets operation life. The tip radius on the severe duty excavator bucket is to or within O.E.M. specifications. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Oversized OEM approved cast teeth and shanks are standard.

Standard Sizes

Standard widths range from 12" to 36" in 6" increments -- special widths available on request. Standard capacity available in all most popular widths.

Additional Features

Bolt-on side cutters are highly recommended for added endurance. Adjustable bushings are available upon request. Box rippers are available and can be installed upon request. Special designs and capacities are available, please request a quote from your local dealer.


PART # WIDTH CAPACITY NO. TEETH WEIGHT
05MSD8 8" 0.65 2 110
05MSD10 10"
0.73 3 115
05MSD12 12" 0.80 3 120
05MSD16 16" 1.00 3 130
05MSD18 18" 1.10 4 140
05MSD20 20" 1.30 4 150
05MSD24 24" 1.70 5 160
MAKE / WEIGHT CLASS MINI 05 (2,100 - 4,900 LBS.)
BOBCAT 323
CASE CX17B
CAT 301.5, 301.7CR, 301.8, 302CR
DOOSAN S015
DITCH WITCH XT850
GEHL GE153
HITACHI EX17U
HYUNDAI R16
IHI 15NX-2
JCB 8018
JOHN DEERE 17G
KOBELCO 17SR
KOMATSU PC18MR-3
KUBOTA KX018, U17
LINK BELT ME1503
MUSTANG E15, E18B
NEW HOLLAND SY16
SANY TB016, TB216
TAKEUCHI EC15B
VOLVO EC20B
YANMAR Vio17, SV08-1, Vio20-3
WACKER NEUSON EZ17, 1404, ET20
